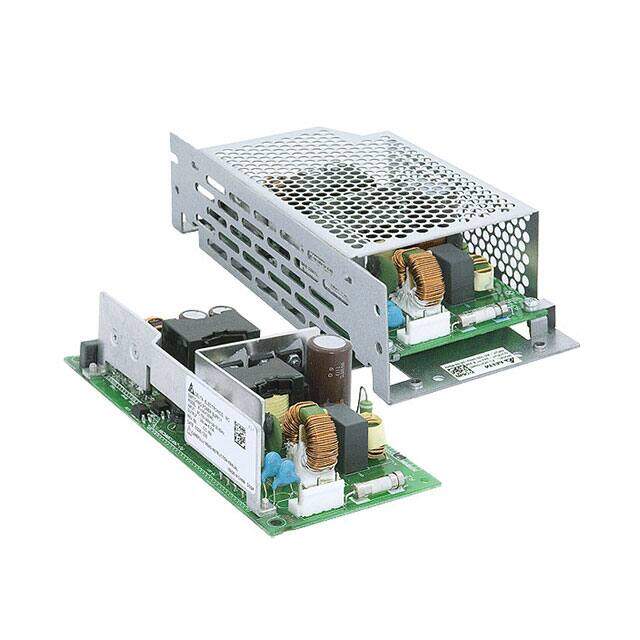

PJ-12V150WCRA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 150W
PDF
/
Inventory: 5821
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -10°C~70°C With Derating
Published 2013
Series PJ (150W)
Size / Dimension 7.40Lx3.35W x 1.85 H 188.0mmx85.0mmx47.0mm
Feature Adjustable Output, PFC, Remote On/Off, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature -10°C
Applications ITE (Commercial)
Power (Watts) 150W
Max Power Dissipation 150W
Number of Outputs 1
Approval Agency CB, CE, cURus, TUV
Efficiency 91%
Voltage - Isolation 3kV
Max Output Current 12.5A
Voltage - Output 1 12V
Current - Output (Max) 12.5A
Voltage - Input 85V~264VAC
Dimensions
Height 47mm
Length 188mm
Width 85mm
Compliance
RoHS Status ROHS3 Compliant
