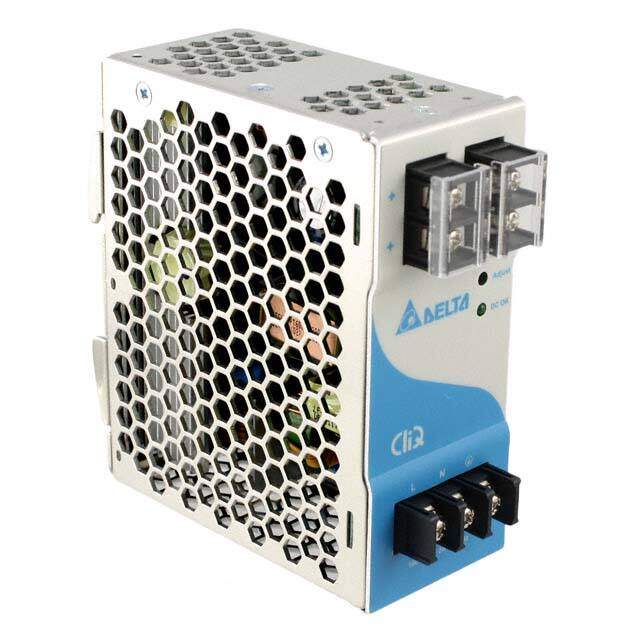

DRP012V100W1AA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
POWER SUPPLY DIN RAIL 100W 12VDC
PDF
/
Buying Options
Total Price: USD $62.06
Unit Price: USD $62.0576
≥1 USD $62.0576
Inventory: 13
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Technical
Operating Temperature -20°C~75°C With Derating
Published 2009
Series CliQ (100W)
Size / Dimension 4.76Lx1.97W x 4.65 H 121.0mmx50.0mmx118.2mm
Feature Adjustable Output, DC Input Capable, Load Sharing, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed, Conformal Coated
Max Operating Temperature 75°C
Min Operating Temperature -20°C
Applications ITE (Commercial)
Power (Watts) 100W
Max Power Dissipation 100W
Number of Outputs 1
Approval Agency CB, cCSAus, CE, cULus, cURus, TUV
Efficiency 87%
Voltage - Isolation 4kV
Output Voltage 12V
Max Output Current 8.33A
Voltage - Output 1 12V
Current - Output (Max) 8.33A
Voltage - Input 85V~264VAC
Dimensions
Height 118.11mm
Length 120.904mm
Width 50.038mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
