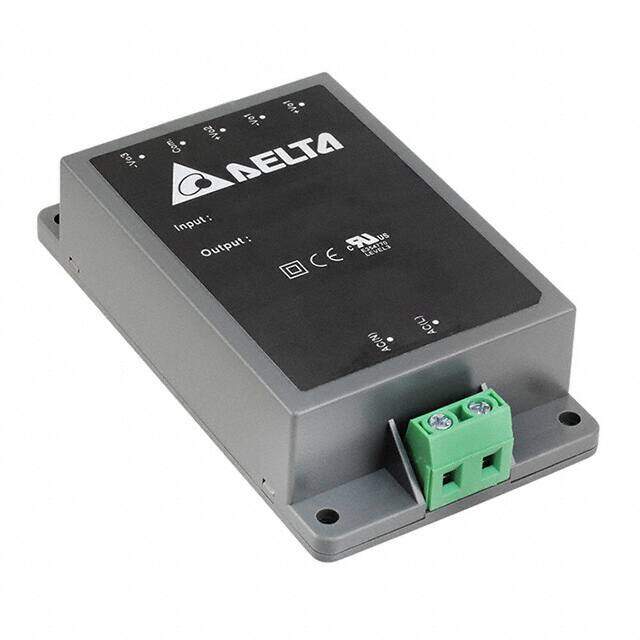

AB60S0500D

Delta Electronics
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description AC/DC CONVERTER 5V 60W
PDF
/
Inventory: 6992
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 67.818mm
Length 112.014mm
Height 38.1mm

Technical

Minimum Load Required No
Voltage - Input 85V~264VAC
Current - Output (Max) 10A
Voltage - Output 1 5V
Max Output Current 10A
Voltage - Isolation 4kV
Efficiency 84%
Approval Agency CE
Number of Outputs 1
Max Power Dissipation 60W
Power (Watts) 60W
Applications ITE (Commercial), Medical
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature DC Input Capable, Universal Input
Size / Dimension 4.41Lx2.67W x 1.50 H 112.0mmx67.8mmx38.0mm
Series AB60S (60W)
Published 2014
Operating Temperature -40°C~80°C

Physical

Mounting Type DIN Rail
Mount DIN Rail

Supply Chain

Factory Lead Time 24 Weeks
