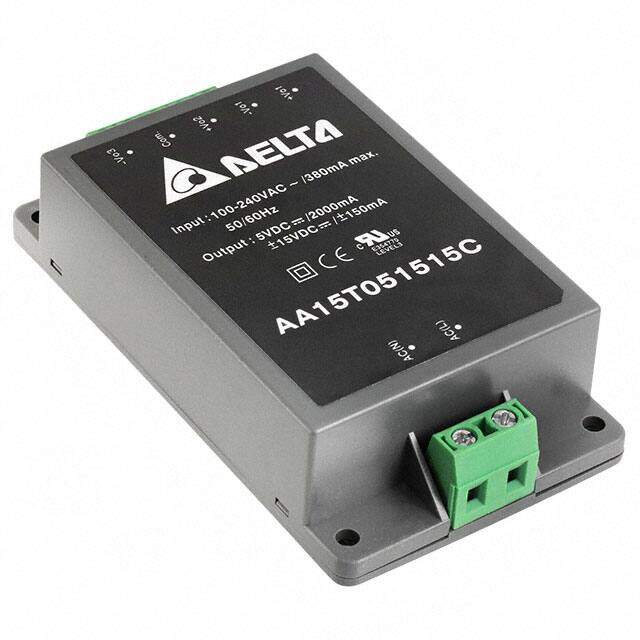

AA15T051515C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 5V +/-15V 15W
PDF
/
Inventory: 3326
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2014
Series AA15T (15W)
Size / Dimension 2.91Lx2.13W x 0.77 H 74.0mmx54.0mmx19.5mm
Feature DC Input Capable, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Applications ITE (Commercial)
Power (Watts) 15W
Max Power Dissipation 15W
Number of Outputs 3
Approval Agency CE
Efficiency 79%
Voltage - Isolation 3kV
Max Output Current 2A
Voltage - Output 1 5V
Current - Output (Max) 2A 150mA 150mA
Voltage - Input 85V~264VAC
Voltage - Output 2 15V
Current - Output 1 2A
Voltage - Output 3 -15V
Max Output Power 15W
Minimum Load Required No
Current - Output 2 150mA
Current - Output 3 -150mA
Dimensions
Height 23.3mm
Length 96mm
Width 54mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
