VSUU-150-30
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

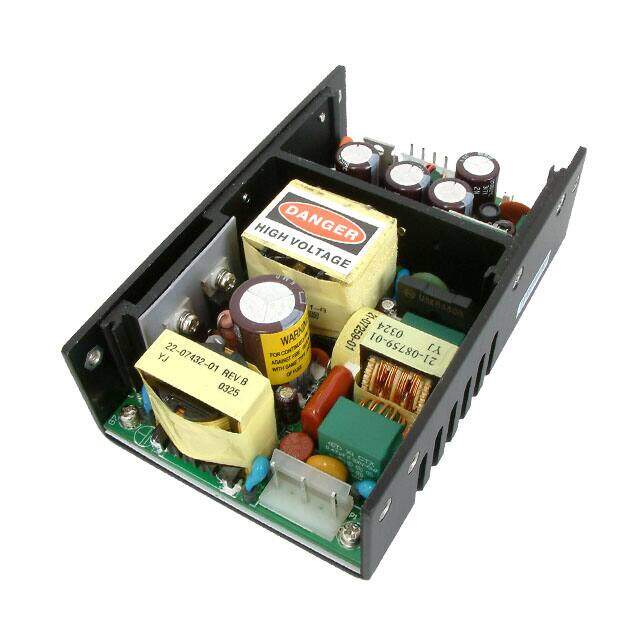

Switching Power Supplies ac-dc, 150W, 30Vdc, single output, U-frame
PDF
/
Inventory: 4078
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Voltage - Input 90V~264VAC
Current - Output (Max) 5A
Voltage - Output 1 30V
Voltage - Isolation 4.242kV
Efficiency 80%
Approval Agency CE, cURus, GS
Number of Outputs 1
Subcategory Power Supply Modules
Power (Watts) 150W
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature PFC, Universal Input
Size / Dimension 5.00Lx3.21W x 1.62 H 127.0mmx81.6mmx41.2mm
Series VSUU-150 (150W)
Operating Temperature 0°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 15 Weeks
Alternative Model
