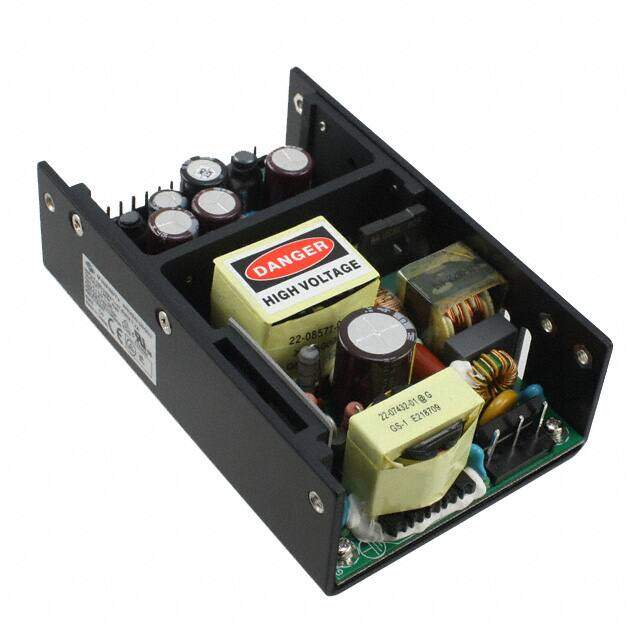

VSUU-120-D524A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 5V 24V 120W
PDF
/
Buying Options
Total Price: USD $94.9
Unit Price: USD $94.8992
≥1 USD $94.8992
Inventory: 142
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Weight 380g
Technical
Operating Temperature 0°C~70°C With Derating
Published 2012
Series VSUU-120-D (120W)
Size / Dimension 5.00Lx3.00W x 1.28 H 127.0mmx76.2mmx32.5mm
Feature DC Input Capable, PFC, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 120W
Max Power Dissipation 120W
Number of Outputs 2
Approval Agency CE, cURus
Efficiency 80%
Voltage - Isolation 4.242kV
Output Voltage 24V
Max Output Current 3.5A
Voltage - Output 1 5V
Current - Output (Max) 15A 3.5A
Voltage - Input 90V~260VAC 130V~370VDC
Output Power 120W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Minimum Load Required No
Ripple Voltage (Main Out) 0.01768Vrms
Dimensions
Height 32.512mm
Width 81.4mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
