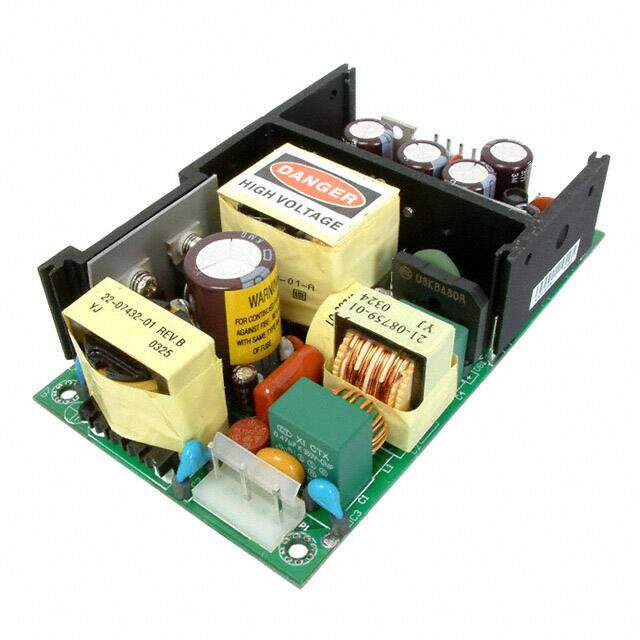

VSBU-120-T305B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 5V 24V 12V 120W
PDF
/
Inventory: 6857
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 76.2mm
Length 127mm
Height 32.512mm
Technical
Ripple Voltage (Main Out) 0.01768Vrms
Minimum Load Required No
Voltage - Output 3 12V
Voltage - Output 2 24V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Voltage - Input 90V~260VAC
Current - Output (Max) 15A 3.5A 800mA
Voltage - Output 1 5V
Max Output Current 3.5A
Output Voltage 5V
Voltage - Isolation 4.242kV
Efficiency 80%
Approval Agency CE, cURus, GS
Number of Outputs 3
Max Power Dissipation 120W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature PFC, Universal Input
Size / Dimension 5.00Lx3.00W x 1.28 H 127.0mmx76.2mmx32.5mm
Series VSBU-120-T (120W)
Published 2015
Operating Temperature 0°C~70°C
Physical
Weight 380g
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 15 Weeks
