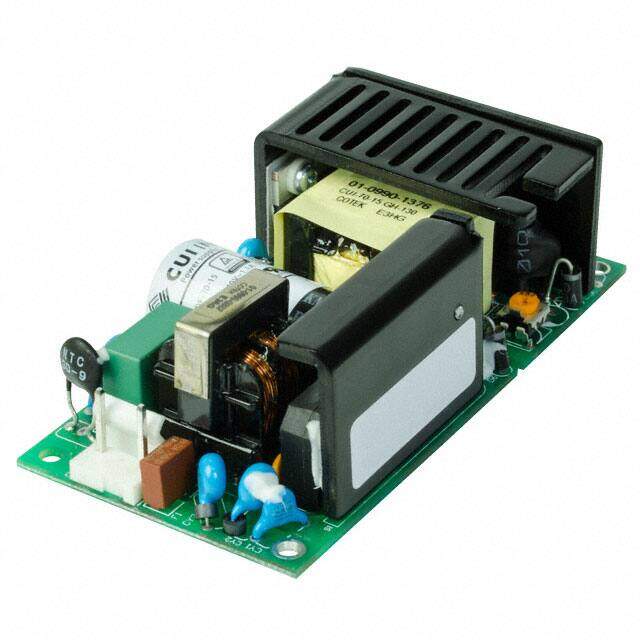

VOF-70-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
Switching Power Supplies ac-dc, 70W, 5Vdc, single output, open PCB
PDF
/
Inventory: 2791
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -20°C~60°C With Derating
Published 2016
Series VOF-70 (70W)
Size / Dimension 4.00Lx2.00W x 1.32 H 101.6mmx50.8mmx33.6mm
Feature Adjustable Output, Universal Input
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 7
Type Open Frame
Applications ITE (Commercial)
Power (Watts) 43W
Subcategory Power Supply Modules
Max Power Dissipation 43W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-XXFM-X7
Number of Outputs 1
Approval Agency CE, cURus, GS
Efficiency 81%
Voltage - Isolation 3kV
Output Voltage 5V
Max Output Current 8.61A
Voltage - Output 1 5V
Input Voltage-Nom 115V
Trim/Adjustable Output YES
Voltage - Input 90V~277VAC
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Ripple Voltage (Main Out) 0.04242Vrms
Dimensions
Height 33.528mm
Width 50.8mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
