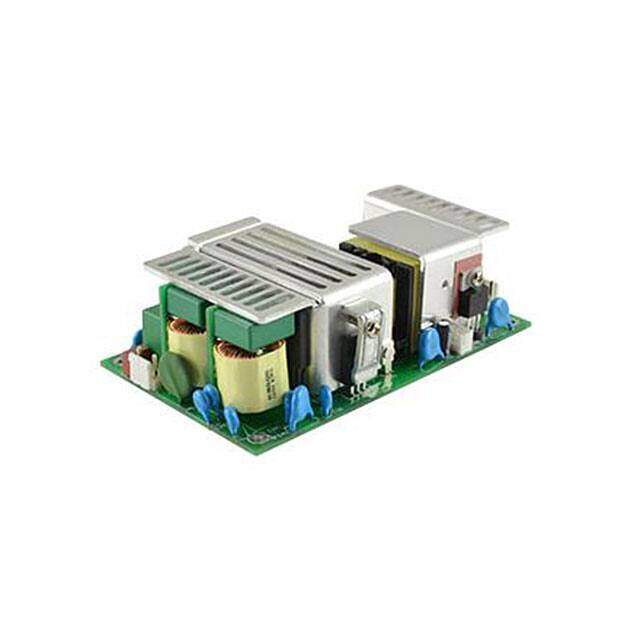

VOF-185-36
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 36V 111W/185W
PDF
/
Inventory: 5349
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -20°C~70°C With Derating
Published 2017
Series VOF-185 (185W)
Size / Dimension 5.00Lx3.00W x 1.38 H 127.0mmx76.2mmx35.0mm
Feature Adjustable Output, PFC, Standby Output, Universal Input
Pbfree Code yes
Part Status Active
Type Open Frame
Applications ITE (Commercial)
Power (Watts) 111W 185W Forced Air
Max Power Dissipation 111W
Number of Outputs 1
Approval Agency CE, cURus, TUV
Efficiency 85%
Voltage - Isolation 3kV
Max Output Current 5.14A
Voltage - Output 1 36V
Voltage - Input 90V~277VAC
Dimensions
Height 35.052mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
