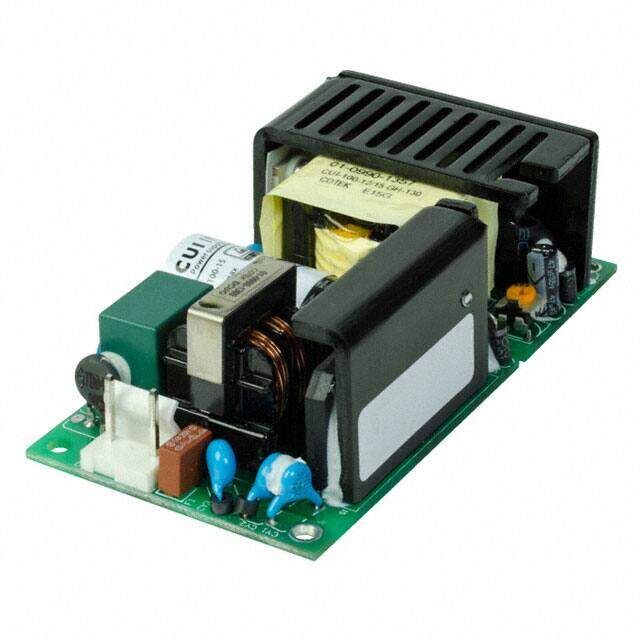

VOF-100-48
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 48V 100W
PDF
/
Inventory: 2576
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 50.8mm
Height 33.528mm
Technical
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Voltage - Input 90V~277VAC
Trim/Adjustable Output YES
Input Voltage-Nom 115V
Voltage - Output 1 48V
Max Output Current 2.1A
Output Voltage 48V
Voltage - Isolation 3kV
Efficiency 87.5%
Approval Agency CE, cURus, GS
Number of Outputs 1
JESD-30 Code R-XXFM-X9
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 100W
Subcategory Power Supply Modules
Power (Watts) 100W
Applications ITE (Commercial)
Type Open Frame
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Adjustable Output, Universal Input
Size / Dimension 4.00Lx2.00W x 1.32 H 101.6mmx50.8mmx33.6mm
Series VOF-100 (100W)
Published 2016
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 19 Weeks
