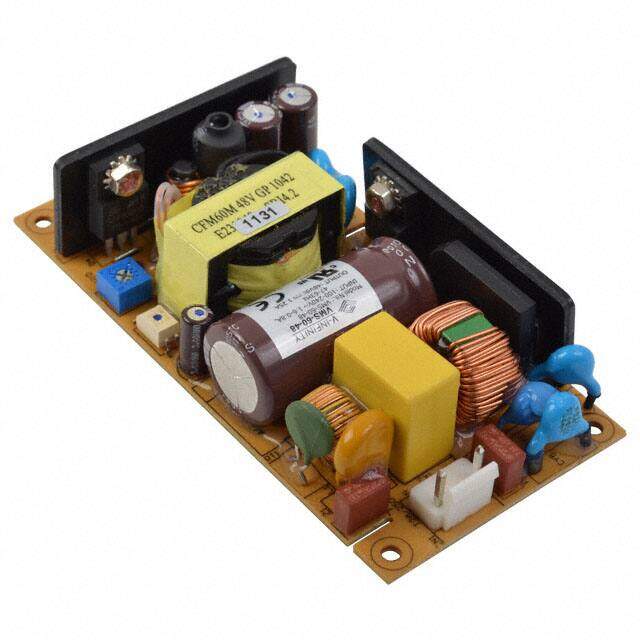

VMS-60-12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 60W
PDF
/
Buying Options
Total Price: USD $37.2
Unit Price: USD $37.1976
≥1 USD $37.1976
≥10 USD $36.1064
≥100 USD $35.01168
≥500 USD $33.917664
≥1000 USD $32.823296
≥3000 USD $31.72928
Inventory: 41
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 50.8mm
Height 27.94mm
Technical
Ripple Voltage (Main Out) 0.04242Vrms
Minimum Load Required No
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 60W
Voltage - Input 90V~264VAC
Trim/Adjustable Output YES
Input Voltage-Nom 100V
Voltage - Output 1 12V
Max Output Current 5A
Output Voltage 12V
Voltage - Isolation 5.656kV
Efficiency 87%
Approval Agency CE, cURus, GS
Number of Outputs 1
JESD-30 Code R-XXMA-X8
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 60W
Subcategory Power Supply Modules
Applications Medical
Type Open Frame
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Adjustable Output, Universal Input
Size / Dimension 4.00Lx2.00W x 1.10 H 101.6mmx50.8mmx27.9mm
Series VMS-60 (60W)
Published 2015
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 12 Weeks
