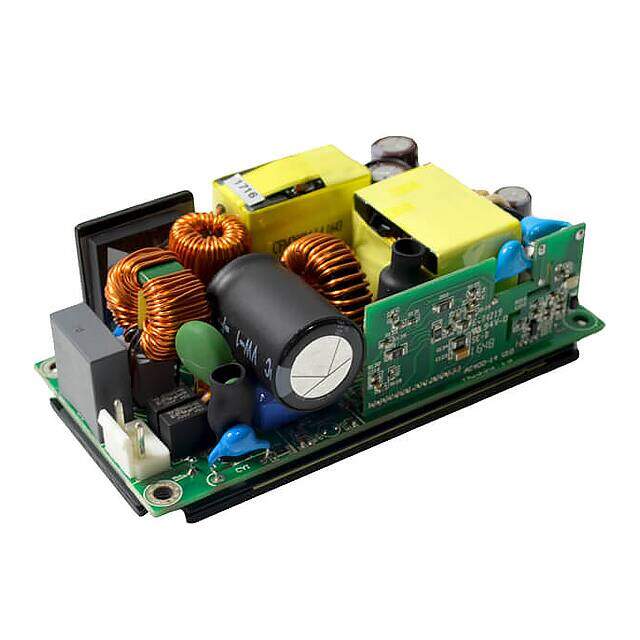

VMS-200-12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC-DC, 200 W, 12 VDC, SINGLE OUT
PDF
/
Buying Options
Total Price: USD $93.46
Unit Price: USD $93.4648
≥1 USD $93.4648
≥10 USD $90.58544
Inventory: 96
Minimum: 1
-
+
Technical Details
Technical
Approval Agency CE, cURus, FCC, TUV
Efficiency 92%
Voltage - Isolation 4kV
Output Voltage 12V
Voltage - Output 1 12V
Input Voltage-Nom 100V
Trim/Adjustable Output NO
Current - Output (Max) 16.67A
Voltage - Input 90V~264VAC
Total Power Output-Max 200W
Number of Outputs 1
JESD-30 Code R-XXMA-X5
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 200W
Applications Medical
Type Open Frame
Number of Terminations 5
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Universal Input
Size / Dimension 4.00Lx2.00W x 1.48 H 101.6mmx50.8mmx37.6mm
Series VMS-200 (200W)
Operating Temperature -20°C~80°C With Derating
Compliance
RoHS Status RoHS Compliant
Physical
Surface Mount NO
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 12 Weeks
