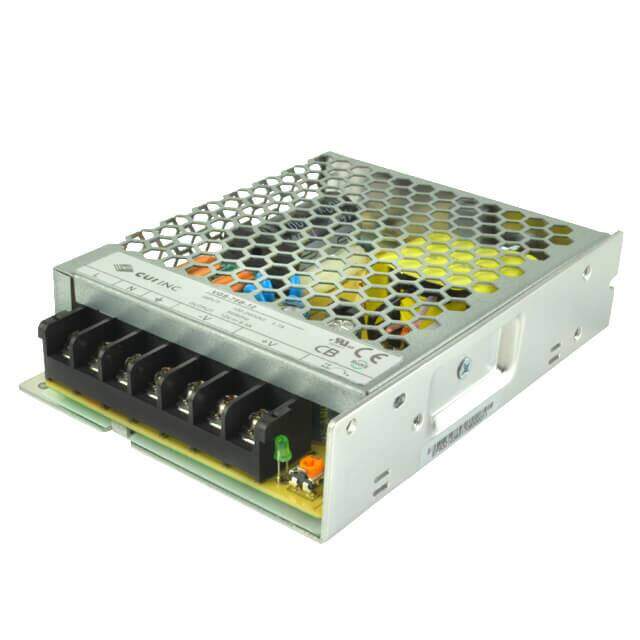

VGS-75B-24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC-DC 75 W 24 VDC SINGLE OUTPUT
PDF
/
Buying Options
Total Price: USD $25.57
Unit Price: USD $25.57004
≥1 USD $25.57004
Inventory: 5505
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Total Power Output-Max 76.8W
Voltage - Input 90V~264VAC
Current - Output (Max) 3.2A
Trim/Adjustable Output YES
Input Voltage-Nom 115V
Voltage - Output 1 24V
Output Voltage 24V
Voltage - Isolation 1.5kV
Efficiency 88%
Approval Agency CB, CE, cURus
Number of Outputs 1
JESD-30 Code R-XXMA-X8
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 77W
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 8
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Adjustable Output, Universal Input
Size / Dimension 5.08Lx3.84W x 1.18 H 129.0mmx97.5mmx30.0mm
Series VGS-75B (75W)
Operating Temperature -20°C~70°C With Derating
Physical
Surface Mount NO
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 15 Weeks
