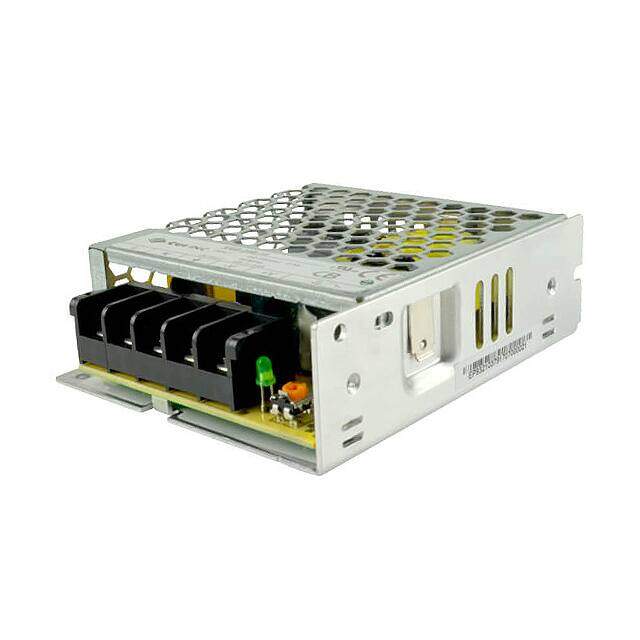

VGS-35B-24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC-DC 35 W 24 VDC SINGLE OUTPUT
PDF
/
Buying Options
Total Price: USD $14.59
Unit Price: USD $14.5904
≥1 USD $14.5904
≥10 USD $14.38096
≥100 USD $14.17284
≥500 USD $12.92236
≥1000 USD $12.505416
≥3000 USD $12.08856
Inventory: 112
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Voltage - Input 90V~264VAC
Current - Output (Max) 1.5A
Voltage - Output 1 24V
Voltage - Isolation 1.5kV
Efficiency 88%
Approval Agency CB, CE, cURus
Number of Outputs 1
Power (Watts) 36W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Adjustable Output, Universal Input
Size / Dimension 3.90Lx3.23W x 1.18 H 99.0mmx82.0mmx30.0mm
Series VGS-35B (36W)
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 15 Weeks
