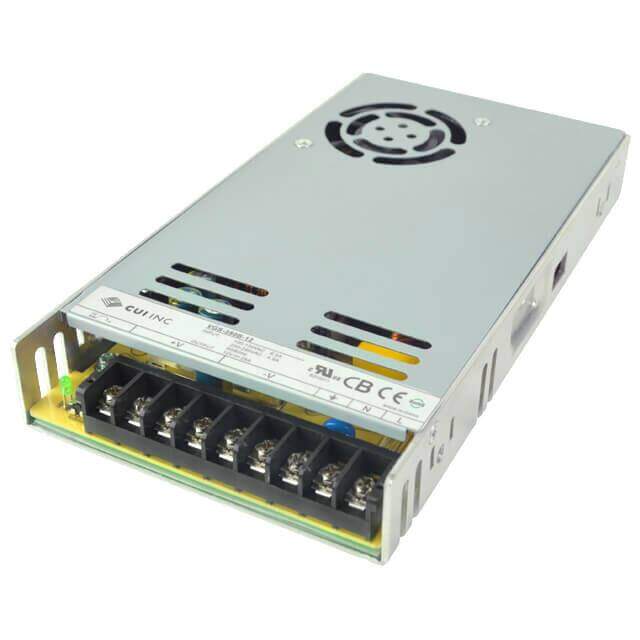

VGS-350B-48
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC-DC 350 W 48 VDC SINGLE OUTPUT
PDF
/
Buying Options
Total Price: USD $61.43
Unit Price: USD $61.4328
≥1 USD $61.4328
≥10 USD $59.571107
≥100 USD $57.709423
≥500 USD $55.84773
≥1000 USD $53.986205
≥3000 USD $52.1246
Inventory: 97
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mounting Type Chassis Mount
Surface Mount NO
Technical
Operating Temperature -20°C~70°C With Derating
Series VGS-350B (350W)
Size / Dimension 8.46Lx4.53W x 1.18 H 215.0mmx115.0mmx30.0mm
Feature Adjustable Output
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 10
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 350W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
Number of Outputs 1
Approval Agency CB, CE, cURus
Efficiency 89%
Voltage - Isolation 1.5kV
Output Voltage 48V
Voltage - Output 1 48V
Input Voltage-Nom 230V
Trim/Adjustable Output YES
Current - Output (Max) 7.3A
Voltage - Input 90V~132VAC 180V~264VAC
Total Power Output-Max 350.4W
Compliance
RoHS Status RoHS Compliant
