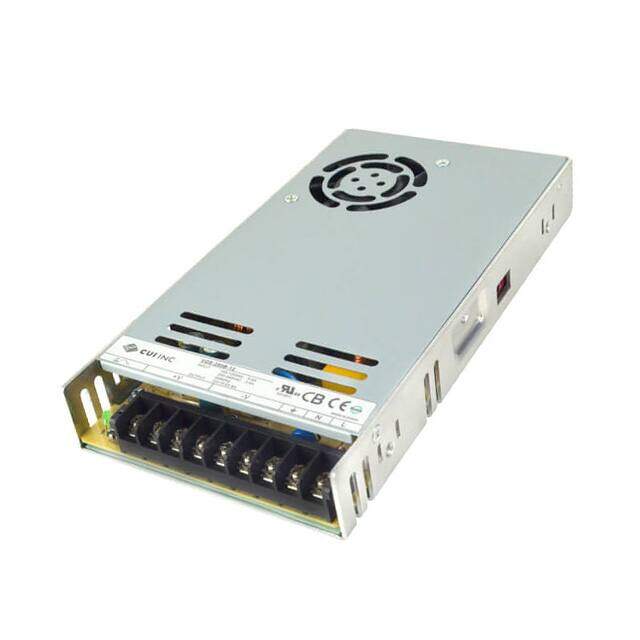

VGS-250B-24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC-DC 250 W 24 VDC SINGLE OUTPUT
PDF
/
Buying Options
Total Price: USD $59.74
Unit Price: USD $59.7432
≥1 USD $59.7432
≥10 USD $57.935293
≥100 USD $56.12493
≥500 USD $54.314577
≥1000 USD $52.504056
≥3000 USD $50.693623
Inventory: 49
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -20°C~70°C With Derating
Series VGS-250B (250W)
Size / Dimension 8.46Lx4.53W x 1.18 H 215.0mmx115.0mmx30.0mm
Feature Adjustable Output
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 252W
Number of Outputs 1
Approval Agency CB, CE, cURus
Efficiency 89%
Voltage - Isolation 1.5kV
Voltage - Output 1 24V
Current - Output (Max) 10.5A
Voltage - Input 90V~132VAC 180V~264VAC
Compliance
RoHS Status RoHS Compliant
