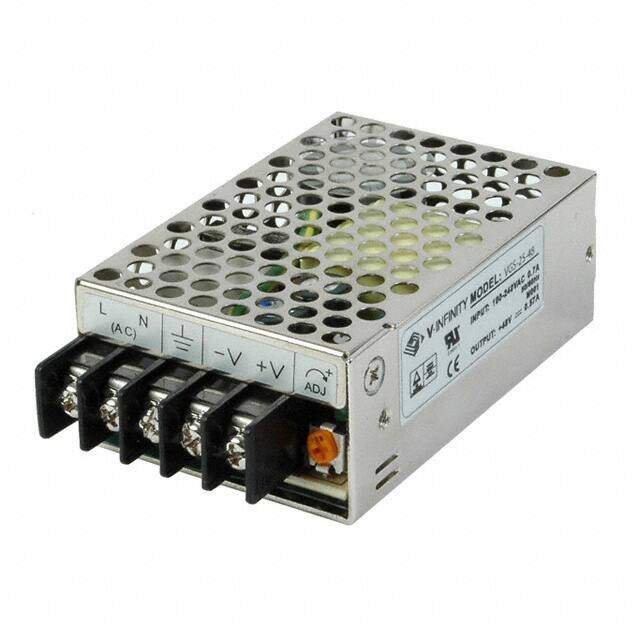

VGS-25-15
RoHS
/
Package Metal
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 15V 25W
PDF
/
Inventory: 8483
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case Metal
Technical
Operating Temperature -20°C~70°C With Derating
Published 2015
Series VGS-25 (27W)
Size / Dimension 3.09Lx2.01W x 1.11 H 78.5mmx51.0mmx28.3mm
Feature Adjustable Output, DC Input Capable, Universal Input
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 25W
Subcategory Power Supply Modules
Max Power Dissipation 25W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-XXMA-X5
Number of Outputs 1
Approval Agency CE, cURus, GS
Efficiency 86%
Voltage - Isolation 4.242kV
Output Voltage 15V
Max Output Current 1.7A
Voltage - Output 1 15V
Input Voltage-Nom 115V
Trim/Adjustable Output YES
Voltage - Input 88V~264VAC
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Total Power Output-Max 25.5W
Minimum Load Required No
Ripple Voltage (Main Out) 0.04242Vrms
Dimensions
Height 28.194mm
Length 78.5mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
