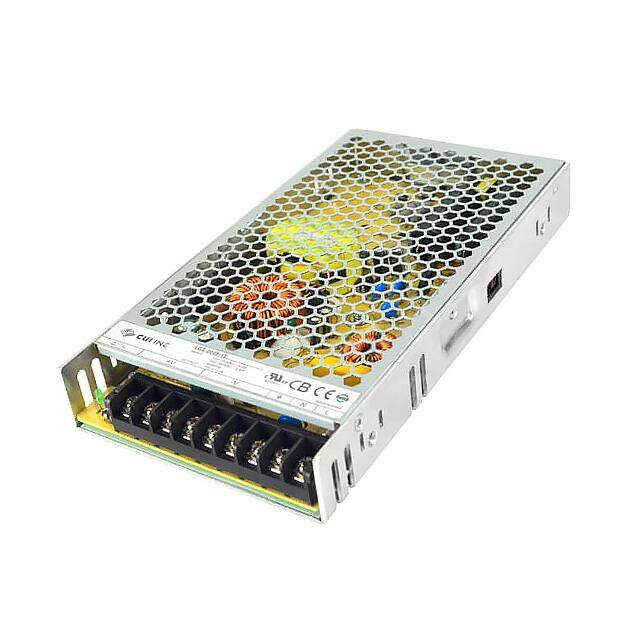

VGS-200B-48
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC-DC 200 W 48 VDC SINGLE OUTPUT
PDF
/
Buying Options
Total Price: USD $51.56
Unit Price: USD $51.5592
≥1 USD $51.5592
≥10 USD $50.000623
≥100 USD $48.437646
≥500 USD $46.875321
≥1000 USD $45.312828
≥3000 USD $43.750256
Inventory: 52
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Voltage - Input 90V~132VAC 180V~264VAC
Current - Output (Max) 4.4A
Trim/Adjustable Output YES
Input Voltage-Nom 115V
Voltage - Output 1 48V
Output Voltage 48V
Voltage - Isolation 1.5kV
Efficiency 90%
Approval Agency CB, CE, cURus
Number of Outputs 1
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 211W
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 10
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Adjustable Output
Size / Dimension 8.46Lx4.53W x 1.18 H 215.0mmx115.0mmx30.0mm
Series VGS-200B (200W)
Operating Temperature -20°C~70°C With Derating
Physical
Surface Mount NO
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 15 Weeks
