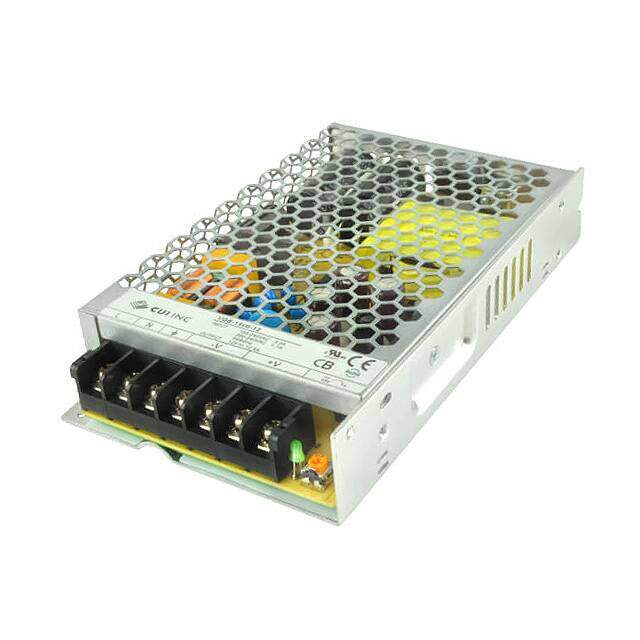

VGS-150B-12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC-DC 150 W 12 VDC SINGLE OUTPUT
PDF
/
Buying Options
Total Price: USD $37.23
Unit Price: USD $37.2328
≥1 USD $37.2328
≥10 USD $36.13456
≥100 USD $35.040342
≥500 USD $33.945058
≥1000 USD $32.850083
≥3000 USD $31.755038
Inventory: 58
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mounting Type Chassis Mount
Surface Mount NO
Technical
Operating Temperature -20°C~70°C With Derating
Series VGS-150B (150W)
Size / Dimension 6.26Lx3.82W x 1.18 H 159.0mmx97.0mmx30.0mm
Feature Adjustable Output
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 8
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 150W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-XXMA-X8
Number of Outputs 1
Approval Agency CB, CE, cURus
Efficiency 86%
Voltage - Isolation 1.5kV
Output Voltage 12V
Voltage - Output 1 12V
Input Voltage-Nom 115V
Trim/Adjustable Output YES
Current - Output (Max) 12.5A
Voltage - Input 88V~132VAC 176V~264VAC
Compliance
RoHS Status RoHS Compliant
