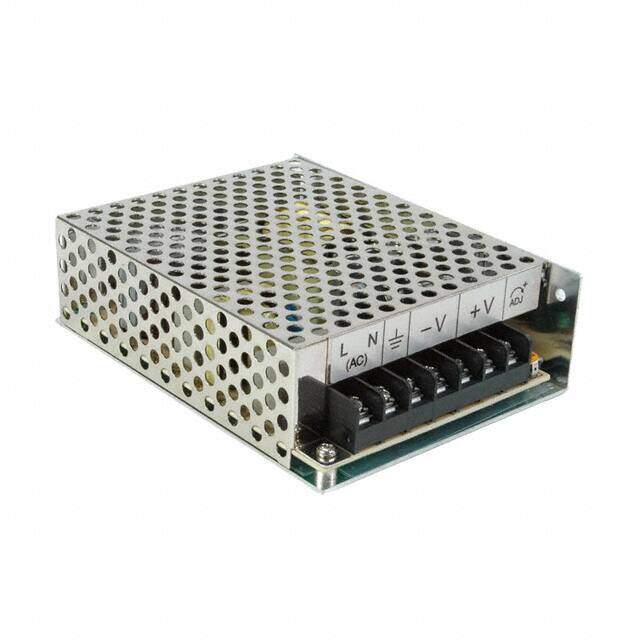

VGS-100-5
RoHS
/
Package Metal
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 5V 100W
PDF
/
Inventory: 7901
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case Metal
Technical
Operating Temperature -20°C~70°C With Derating
Published 2012
Series VGS-100 (110W)
Size / Dimension 5.10Lx3.84W x 1.48 H 129.5mmx97.5mmx37.5mm
Feature Adjustable Output, DC Input Capable, Universal Input
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 7
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 100W
Subcategory Power Supply Modules
Max Power Dissipation 100W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-XXMA-X7
Number of Outputs 1
Approval Agency TUV, UL
Efficiency 80%
Voltage - Isolation 4.242kV
Output Voltage 5V
Max Output Current 16A
Input Voltage-Nom 115V
Trim/Adjustable Output YES
Voltage - Input 88V~264VAC
Output Power 80W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Minimum Load Required No
Dimensions
Height 37.592mm
Width 97.5mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
