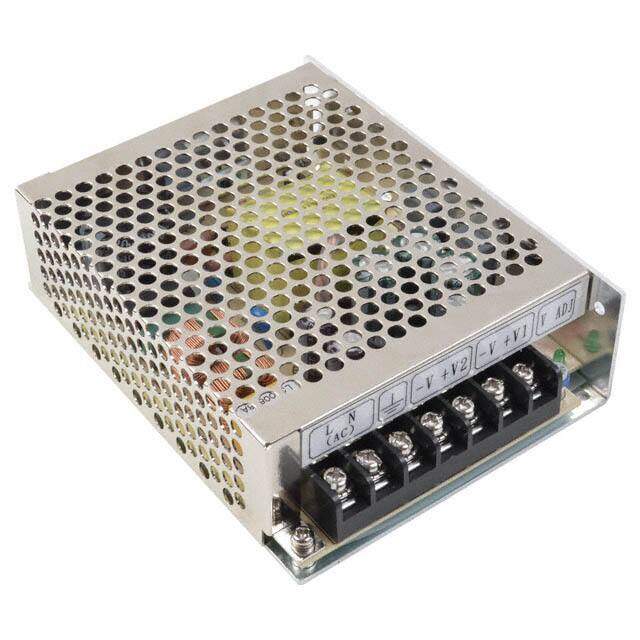

VGD-60-D512
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 5V 12V 60W
PDF
/
Inventory: 4746
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 99.06mm
Length 129.54mm
Height 38.1mm
Technical
Voltage - Output 2 12V
Voltage - Input 85V~264VAC
Current - Output (Max) 6A 4A
Voltage - Output 1 5V
Max Output Current 4A
Efficiency 79%
Approval Agency CE, cURus
Number of Outputs 2
Max Power Dissipation 60W
Power (Watts) 60W
Applications ITE (Commercial)
Min Operating Temperature -10°C
Max Operating Temperature 60°C
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 5.10Lx3.90W x 1.50 H 129.0mmx98.0mmx38.0mm
Series VGD-60 (60W)
Published 2016
Operating Temperature -10°C~60°C With Derating
Physical
Package / Case Metal
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 13 Weeks
