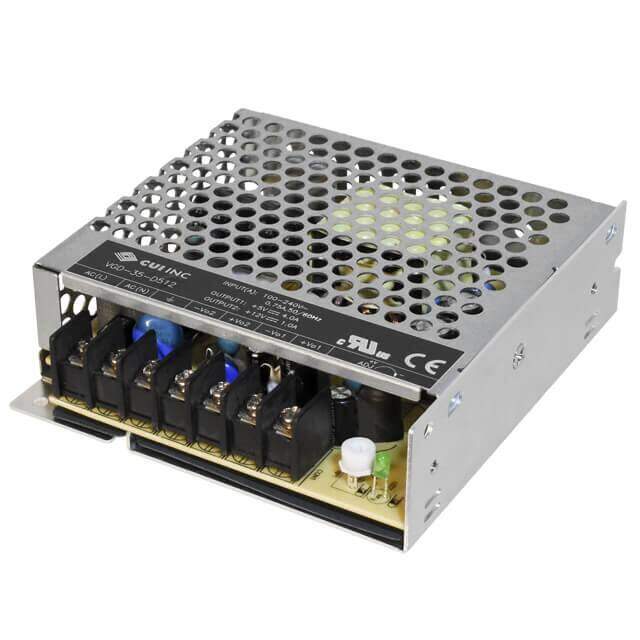

VGD-35-D512
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC-DC, 35 W, 12 VDC, DUAL OUTPUT
PDF
/
Buying Options
Total Price: USD $18.74
Unit Price: USD $18.7352
≥1 USD $18.7352
≥10 USD $18.18432
≥100 USD $17.63344
≥500 USD $16.531715
≥1000 USD $15.980615
Inventory: 221
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -30°C~70°C With Derating
Series VGD-35
Size / Dimension 3.82Lx3.64W x 1.18 H 97.0mmx92.5mmx30.0mm
Feature Adjustable Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications Household Appliances, ITE (Commercial)
Power (Watts) 32W
Number of Outputs 2
Approval Agency CE, cURus
Efficiency 81%
Voltage - Isolation 3kV
Voltage - Output 1 5V
Current - Output (Max) 4A 1A
Voltage - Input 85V~264VAC 120V~373VDC
Voltage - Output 2 12V
Minimum Load Required Yes
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
