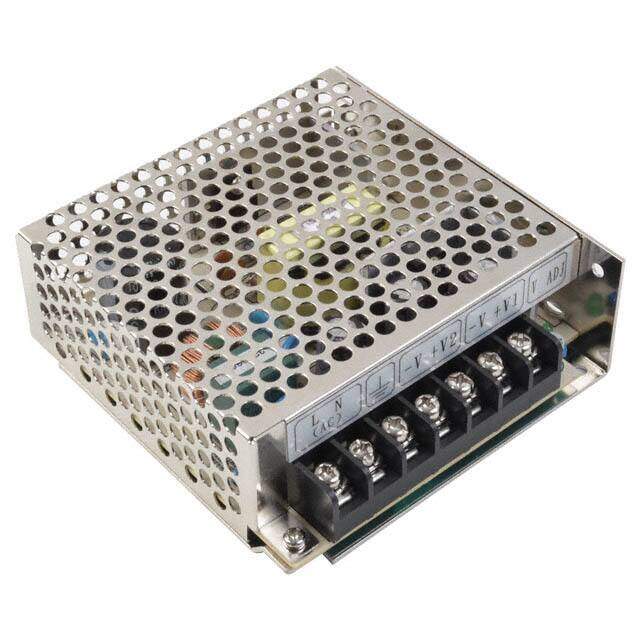

VGD-30-D512
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 5V 12V 30W
PDF
/
Inventory: 2638
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 97mm
Length 99mm
Height 36.068mm
Technical
Voltage - Output 2 12V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Voltage - Input 85V~264VAC
Current - Output (Max) 4A 2A
Trim/Adjustable Output YES
Input Voltage-Nom 115V
Voltage - Output 1 5V
Max Output Current 2A
Output Voltage 5V
Efficiency 79%
Approval Agency CE, cURus
Number of Outputs 2
JESD-30 Code R-XXMA-X7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 30W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Pbfree Code yes
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 3.90Lx3.82W x 1.42 H 99.0mmx97.0mmx36.0mm
Series VGD-30 (30W)
Published 2016
Operating Temperature -10°C~60°C With Derating
Physical
Package / Case Metal
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 12 Weeks
