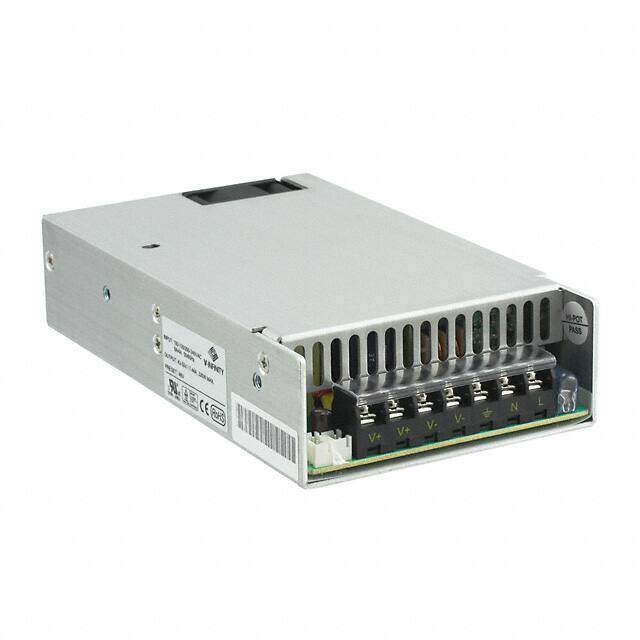

VF-S320-48A-CFS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 48V 320W
PDF
/
Buying Options
Total Price: USD $116.69
Unit Price: USD $116.688
≥1 USD $116.688
Inventory: 304
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 40.64mm
Technical
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Voltage - Input 90V~132VAC 180V~264VAC
Voltage - Output 1 48V
Max Output Current 6.67A
Output Voltage 48V
Voltage - Isolation 3kV
Efficiency 83%
Approval Agency CB, CE, cURus, TUVgs
Number of Outputs 1
Max Power Dissipation 320W
Subcategory Power Supply Modules
Power (Watts) 320W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Adjustable Output, PFC, Universal Input
Size / Dimension 7.00Lx4.00W x 1.60 H 177.8mmx101.6mmx40.6mm
Series VF-S320 (320W)
Published 2016
Operating Temperature 0°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 23 Weeks
