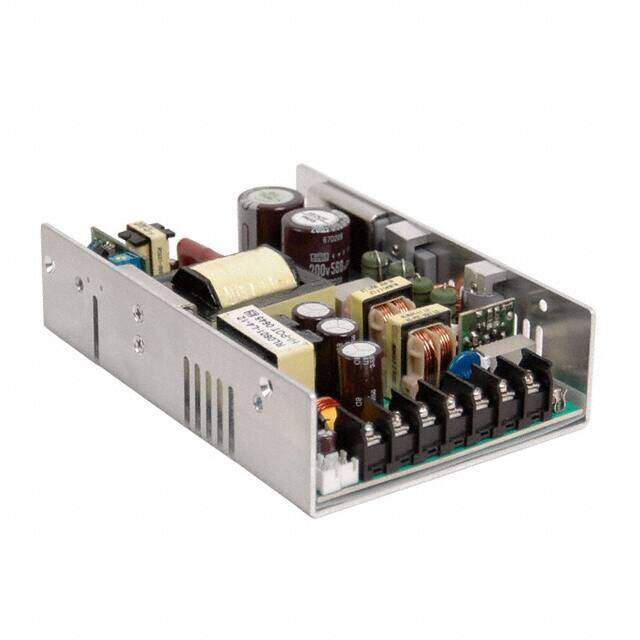

VF-S320-24A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 180W
PDF
/
Buying Options
Total Price: USD $118.54
Unit Price: USD $118.5448
≥1 USD $118.5448
Inventory: 125
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature 0°C~70°C With Derating
Published 2012
Series VF-S320 (320W)
Size / Dimension 6.00Lx4.00W x 1.50 H 152.4mmx101.6mmx38.1mm
Feature Adjustable Output, PFC, Universal Input
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial)
Power (Watts) 180W 320W Forced Air
Subcategory Power Supply Modules
Max Power Dissipation 180W
Number of Outputs 1
Approval Agency CB, CE, cURus, TUVgs
Efficiency 83%
Voltage - Isolation 3kV
Output Voltage 24V
Max Output Current 7.5A
Voltage - Output 1 24V
Voltage - Input 90V~132VAC 180V~264VAC
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Total Power Output-Max 320W
Ripple Voltage (Main Out) 0.08484Vrms
Dimensions
Height 38.1mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
