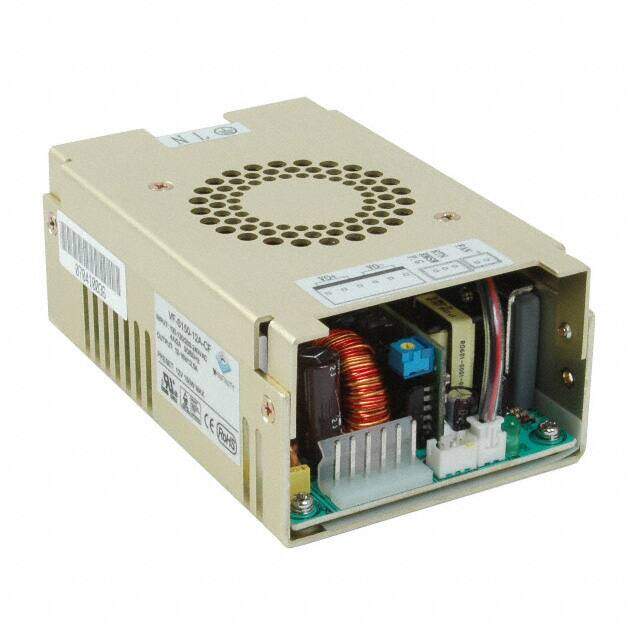

VF-S250-12A-CF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 250W
PDF
/
Buying Options
Total Price: USD $151.86
Unit Price: USD $151.8616
≥1 USD $151.8616
≥10 USD $147.1184
≥100 USD $142.37256
≥500 USD $137.62672
≥1000 USD $132.88088
Inventory: 148
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 50.8mm
Technical
Ripple Voltage (Main Out) 0.04242Vrms
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Voltage - Input 90V~264VAC
Voltage - Output 1 12V
Max Output Current 20.83A
Output Voltage 12V
Voltage - Isolation 3kV
Efficiency 80%
Approval Agency CB, CE, cURus, TUVgs
Number of Outputs 1
Max Power Dissipation 250W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Power (Watts) 250W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Adjustable Output, PFC, Remote On/Off, Universal Input
Size / Dimension 5.00Lx3.20W x 2.00 H 127.0mmx81.3mmx50.8mm
Series VF-S250 (250W)
Published 2016
Operating Temperature 0°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 23 Weeks
