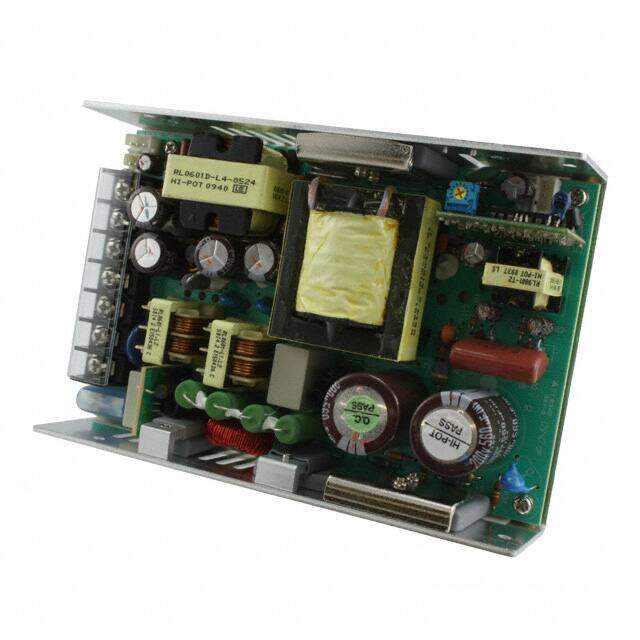

VF-D320-D548A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 5V 48V 320W
PDF
/
Inventory: 6765
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 101.6mm
Height 38.1mm
Technical
Ripple Voltage (Main Out) 0.01768Vrms
Voltage - Output 2 48V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Voltage - Input 90V~132VAC 180V~264VAC
Current - Output (Max) 30A 4.16A
Voltage - Output 1 5V
Max Output Current 4.16A
Output Voltage 5V
Voltage - Isolation 3kV
Efficiency 75%
Approval Agency CB, CE, cURus, TUVgs
Number of Outputs 2
Max Power Dissipation 320W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Adjustable Output, PFC, Universal Input
Size / Dimension 6.00Lx4.00W x 1.50 H 152.4mmx101.6mmx38.1mm
Series VF-D320-D (300W)
Published 2016
Operating Temperature 0°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 23 Weeks
