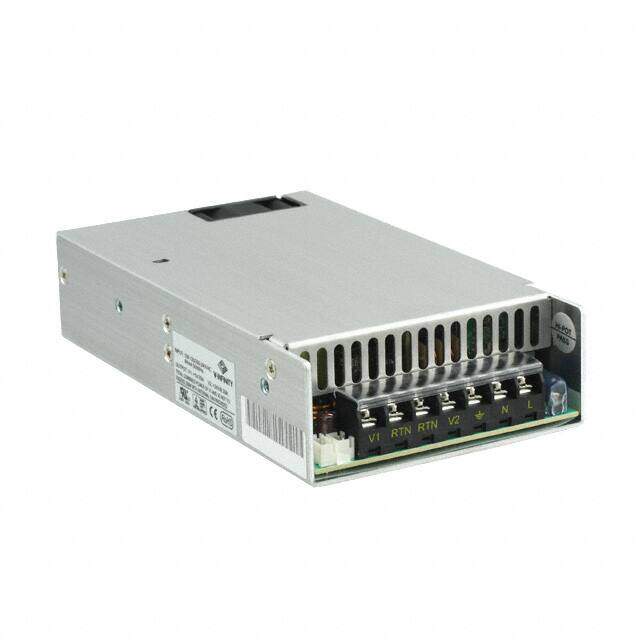

VF-D320-D512A-CFS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 5V 12V 320W
PDF
/
Buying Options
Total Price: USD $143.07
Unit Price: USD $143.071069
≥1 USD $143.071069
≥10 USD $134.972707
≥100 USD $127.332751
≥500 USD $120.125229
≥1000 USD $113.325683
Inventory: 3725
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 101.6mm
Length 177.8mm
Height 40.64mm
Technical
Ripple Voltage (Main Out) 0.01768Vrms
Voltage - Output 2 12V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Voltage - Input 90V~132VAC 180V~264VAC
Current - Output (Max) 30A 16.67A
Trim/Adjustable Output YES
Input Voltage-Nom 115V
Voltage - Output 1 5V
Max Output Current 16.67A
Output Voltage 5V
Voltage - Isolation 3kV
Efficiency 75%
Approval Agency CB, CE, cURus, TUVgs
Number of Outputs 2
JESD-30 Code R-MXMA-X18
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 320W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 18
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Adjustable Output, PFC, Universal Input
Size / Dimension 7.00Lx4.00W x 1.60 H 177.8mmx101.6mmx40.6mm
Series VF-D320-D (300W)
Published 2012
Operating Temperature 0°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 23 Weeks
