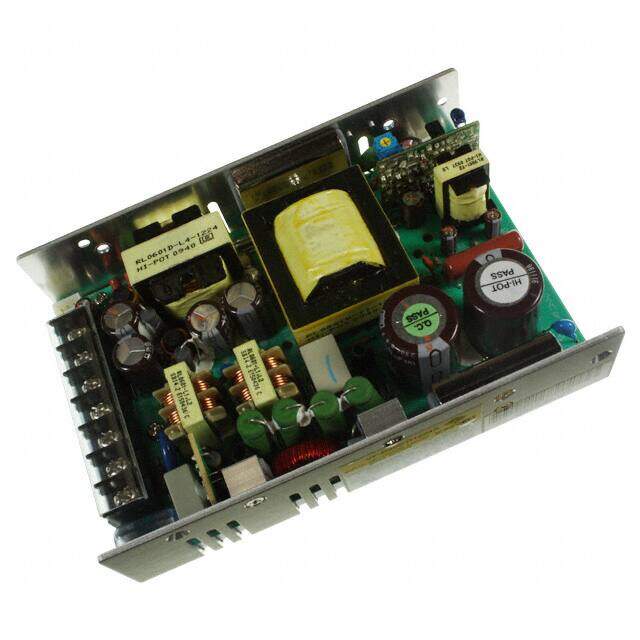

VF-D320-D1224A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 24V 320W
PDF
/
Buying Options
Total Price: USD $191.27
Unit Price: USD $191.268
≥1 USD $191.268
≥10 USD $185.2928
≥100 USD $179.31584
≥500 USD $173.338176
≥1000 USD $167.36104
Inventory: 102
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature 0°C~70°C With Derating
Published 2016
Series VF-D320-D (300W)
Size / Dimension 6.00Lx4.00W x 1.50 H 152.4mmx101.6mmx38.1mm
Feature Adjustable Output, PFC, Universal Input
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
Type Open Frame
Applications ITE (Commercial)
Subcategory Power Supply Modules
Max Power Dissipation 320W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-XXMA-X16
Number of Outputs 2
Approval Agency CB, CE, cURus, TUVgs
Efficiency 75%
Voltage - Isolation 3kV
Output Voltage 12V
Max Output Current 8.33A
Voltage - Output 1 12V
Input Voltage-Nom 230V
Trim/Adjustable Output YES
Current - Output (Max) 16.67A 8.33A
Voltage - Input 90V~132VAC 180V~264VAC
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Voltage - Output 2 24V
Total Power Output-Max 150W
Dimensions
Height 38.1mm
Width 101.6mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
