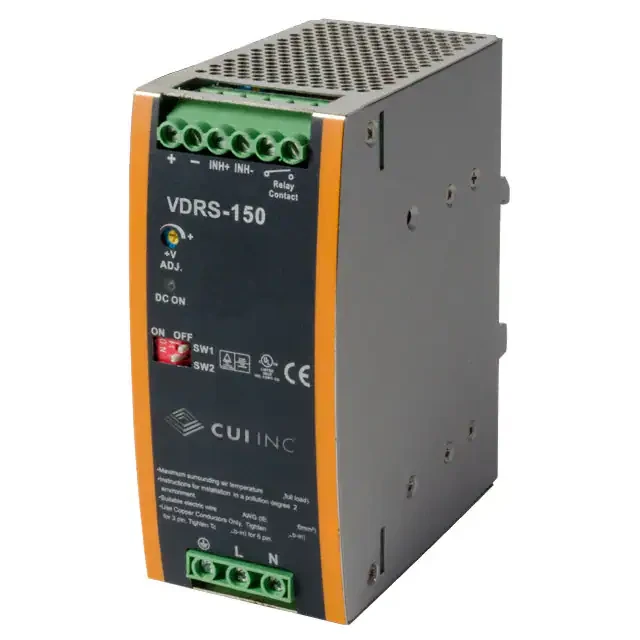

VDRS-150-48
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 48V 150W
PDF
/
Buying Options
Total Price: USD $125.19
Unit Price: USD $125.1888
≥1 USD $125.1888
Inventory: 76
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 124.968mm
Technical
Voltage - Input 88V~264VAC
Trim/Adjustable Output YES
Input Voltage-Nom 115V
Voltage - Output 1 48V
Max Output Current 3.2A
Output Voltage 48V
Voltage - Isolation 4.242kV
Efficiency 87%
Approval Agency CE, cULus, cURus, TUV
Number of Outputs 1
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 150W
Power (Watts) 150W
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 10
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Feature Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input
Size / Dimension 3.93Lx2.19W x 4.92 H 99.8mmx55.5mmx125.0mm
Series VDRS-150 (150W)
Published 2015
Operating Temperature -10°C~70°C
Physical
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 14 Weeks
