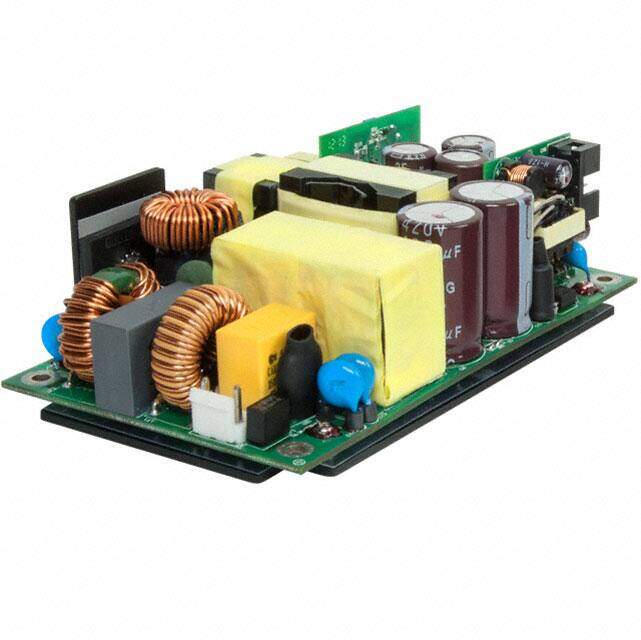

VBM-360-48
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 48V 360W
PDF
/
Inventory: 9001
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 76.2mm
Height 40.64mm
Technical
Ripple Voltage (Main Out) 0.05303Vrms
Total Power Output-Max 355W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Voltage - Input 90V~264VAC
Voltage - Output 1 48V
Max Output Current 7.4A
Output Voltage 48V
Voltage - Isolation 3kV
Efficiency 94%
Approval Agency CE, cURus, GS
Number of Outputs 1
Max Power Dissipation 360W
Subcategory Power Supply Modules
Power (Watts) 360W
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
Size / Dimension 5.00Lx3.00W x 1.60 H 127.0mmx76.2mmx40.6mm
Series VBM-360 (360W)
Published 2016
Operating Temperature -20°C~85°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 12 Weeks
