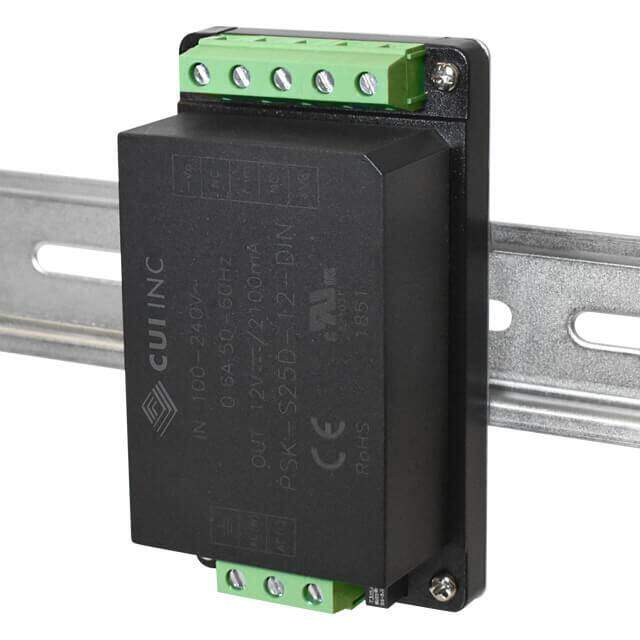

PSK-S25D-12-DIN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC-DC, 25 W, 12 VDC, SINGLE OUTP
PDF
/
Inventory: 1638
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type DIN Rail
Technical
Operating Temperature -40°C~85°C With Derating
Series PSK-S25D (25W)
Size / Dimension 2.13Lx1.44W x 3.78 H 54.00mmx36.6mmx96.1mm
Feature Adjustable Output, Universal Input
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 25W
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) 10
Number of Outputs 1
Approval Agency CE, cURus
Efficiency 83%
Voltage - Isolation 4kV
Voltage - Output 1 12V
Current - Output (Max) 2.1A
Voltage - Input 85V~264VAC 100V~370VDC
Compliance
RoHS Status RoHS Compliant
