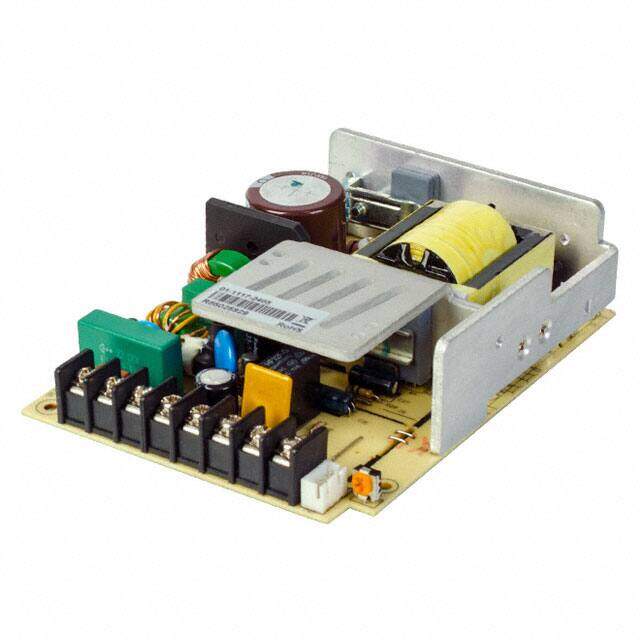

PSF-75-D image
Favorite
PSF-75-D image
Favorite

PSF-75-D

CUI Inc.
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description Switching Power Supplies ac-dc, 75W, 27.6/27.6/5Vdc, triple output, open PCB
PDF
/
Inventory: 8036
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Height 30.988mm

Technical

Voltage - Output 3 5V
Voltage - Input 90V~264VAC
Current - Output (Max) 2.2A 1.15A 3A
Voltage - Output 1 27.6V
Max Output Current 3A
Voltage - Isolation 3kV
Efficiency 87%
Approval Agency CE, cURus, TUV
Number of Outputs 3
Max Power Dissipation 75W
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 4.84Lx3.74W x 1.22 H 123.0mmx95.0mmx31.0mm
Series PSF-75 (75W)
Published 2016
Operating Temperature -20°C~70°C With Derating

Physical

Mounting Type Chassis Mount
Mount Chassis Mount
