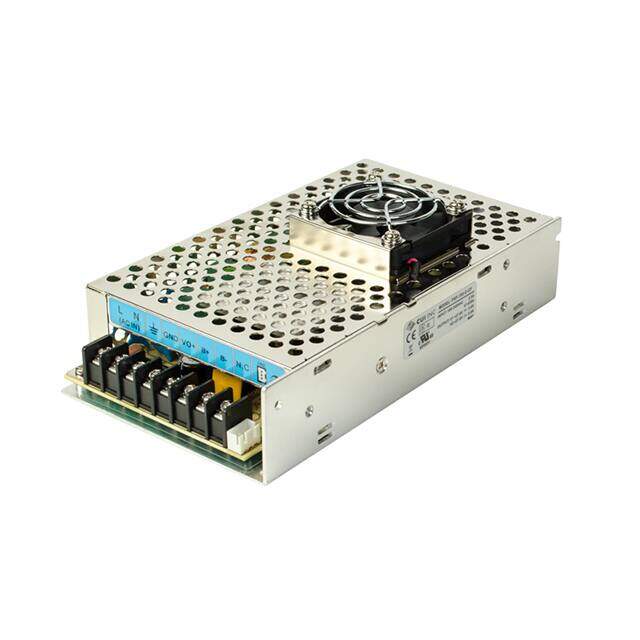

PSF-155-A-CF image
Favorite
PSF-155-A-CF image
Favorite

PSF-155-A-CF

CUI Inc.
RoHS
/
Package Metal
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description Switching Power Supplies ac-dc, 155W, 13.8/13.8Vdc, dual output, metal casew/topfan
PDF
/
Inventory: 1809
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Max Power Dissipation 155W
Number of Outputs 2
Approval Agency CE, cURus, TUV
Efficiency 86%
Voltage - Isolation 3kV
Max Output Current 3.88A
Voltage - Output 1 13.8V
Current - Output (Max) 11.2A 3.88A
Voltage - Input 90V~264VAC
Minimum Load Required No
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 5.10Lx3.84W x 1.48 H 129.5mmx97.5mmx37.5mm
Series PSF-155 (155W)
Published 2016
Operating Temperature -20°C~70°C With Derating

Dimensions

Height 37.592mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free

Physical

Package / Case Metal
Mounting Type Chassis Mount
Mount Chassis Mount
