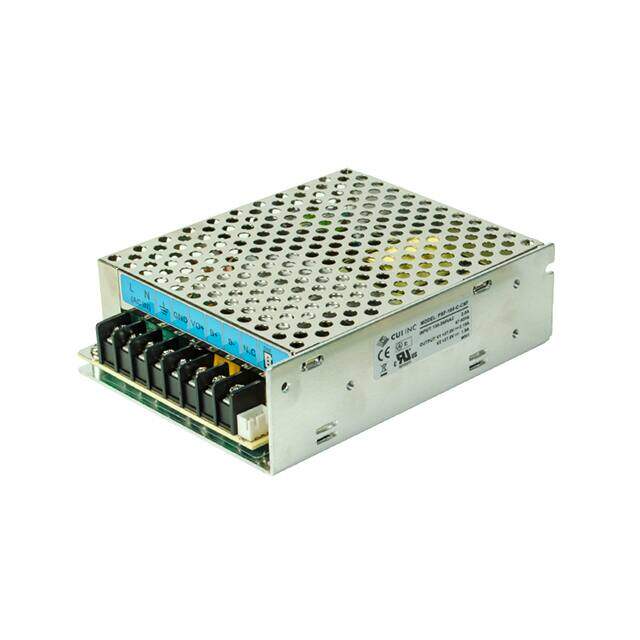

PSF-100-B
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 2X13.8V 5V 100W
PDF
/
Inventory: 5181
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 95mm
Height 30.48mm
Technical
Minimum Load Required No
Voltage - Output 3 5V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Voltage - Input 90V~264VAC
Current - Output (Max) 6.2A 2.88A 3A
Trim/Adjustable Output YES
Input Voltage-Nom 115V
Voltage - Output 1 13.8V
Max Output Current 2.88A
Output Voltage 5V
Voltage - Isolation 3kV
Efficiency 85%
Approval Agency CE, cURus, TUV
Number of Outputs 3
JESD-30 Code R-XXMA-X9
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 100W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Open Frame
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 4.80Lx3.70W x 1.20 H 123.0mmx95.0mmx31.0mm
Series PSF-100 (100W)
Published 2016
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount
