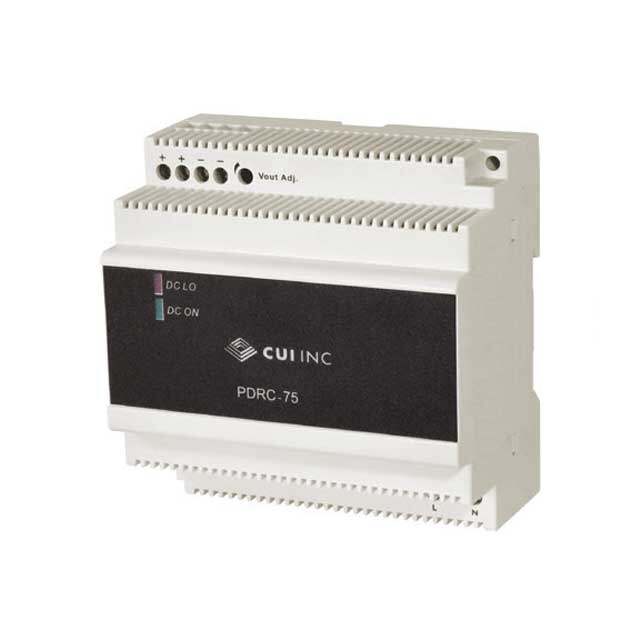

PDRC-75-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC-DC, 75 W, 5 VDC, SINGLE OUTPU
PDF
/
Inventory: 6778
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Input 90V~264VAC 120V~375VDC
Current - Output (Max) 12A
Voltage - Output 1 5V
Voltage - Isolation 3kV
Efficiency 80%
Approval Agency CE, cULus, TUV
Number of Outputs 1
Power (Watts) 60W
Applications Industrial, ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, IP20, Universal Input
Size / Dimension 3.54Lx2.24W x 3.58 H 90.0mmx57.0mmx91.0mm
Series PDRC-75 (75W)
Operating Temperature -40°C~71°C With Derating
Physical
Mounting Type DIN Rail
Supply Chain
Factory Lead Time 16 Weeks
