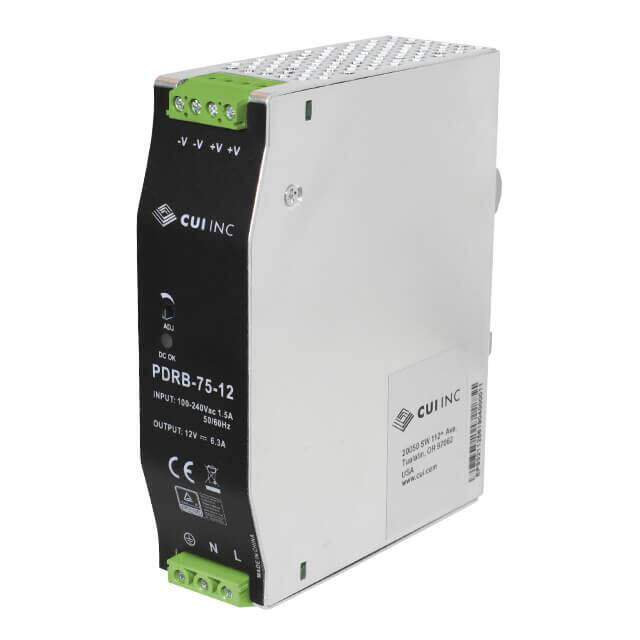

PDRB-75-12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 76W
PDF
/
Buying Options
Total Price: USD $43.74
Unit Price: USD $43.736
≥1 USD $43.736
Inventory: 130
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Voltage - Input 90V~264VAC 127V~370VDC
Current - Output (Max) 6.3A
Voltage - Output 1 12V
Voltage - Isolation 3kV
Efficiency 87.5%
Approval Agency CB, CE, TUV
Number of Outputs 1
Power (Watts) 76W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Adjustable Output, IP20, Universal Input
Size / Dimension 4.04Lx1.36W x 4.96 H 102.5mmx34.5mmx126.0mm
Series PDRB-75 (75W)
Operating Temperature -25°C~70°C With Derating
Physical
Mounting Type DIN Rail
Supply Chain
Factory Lead Time 17 Weeks
