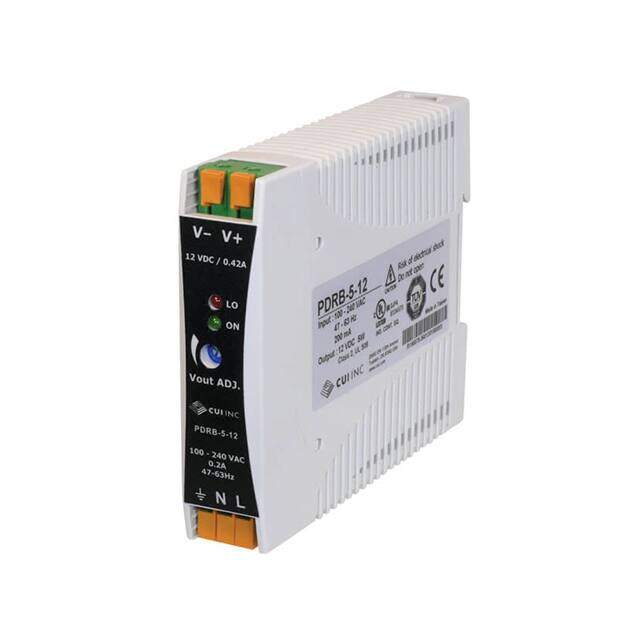

PDRB-5-12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC-DC, 5 W, 12 VDC, SINGLE OUTPU
PDF
/
Buying Options
Total Price: USD $39.04
Unit Price: USD $39.041018
≥1 USD $39.041018
≥10 USD $36.831143
≥100 USD $34.74637
≥500 USD $32.779589
≥1000 USD $30.924143
Inventory: 1119
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Input 90V~264VAC 120V~375VDC
Current - Output (Max) 420mA
Voltage - Output 1 12V
Voltage - Isolation 3kV
Efficiency 72%
Approval Agency CE, cULus, TUV
Number of Outputs 1
Power (Watts) 5W
Applications Industrial, ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, IP20, Universal Input
Size / Dimension 4.49Lx0.89W x 3.54 H 114.0mmx22.5mmx90.0mm
Series PDRB-5 (5W)
Operating Temperature -20°C~71°C With Derating
Physical
Mounting Type DIN Rail
Supply Chain
Factory Lead Time 16 Weeks
