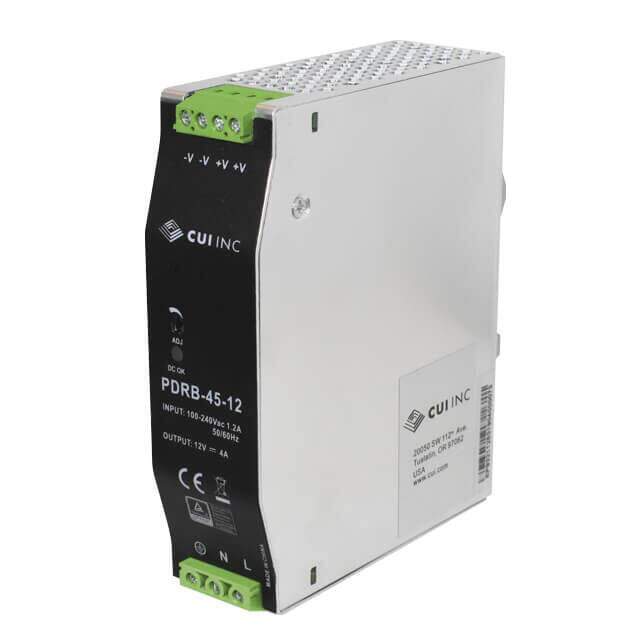

PDRB-45-12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 48W
PDF
/
Buying Options
Total Price: USD $42.11
Unit Price: USD $42.108
≥1 USD $42.108
Inventory: 112
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Voltage - Input 90V~264VAC 127V~370VDC
Current - Output (Max) 4A
Voltage - Output 1 12V
Voltage - Isolation 3kV
Efficiency 87%
Approval Agency CB, CE, TUV
Number of Outputs 1
Power (Watts) 48W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Adjustable Output, IP20, Universal Input
Size / Dimension 4.04Lx1.36W x 4.96 H 102.5mmx34.5mmx126.0mm
Series PDRB-45 (45W)
Operating Temperature -25°C~70°C With Derating
Physical
Mounting Type DIN Rail
Supply Chain
Factory Lead Time 17 Weeks
