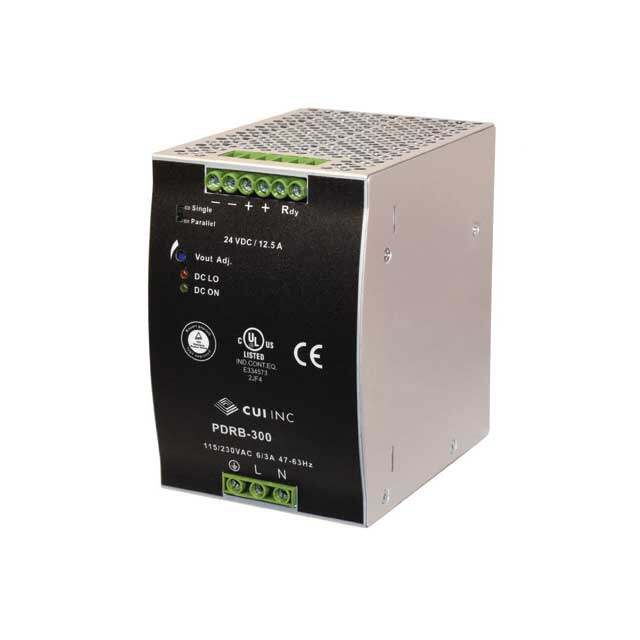

PDRB-300-24A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC-DC, 300 W, 24 VDC, SINGLE OUT
PDF
/
Buying Options
Total Price: USD $141.26
Unit Price: USD $141.264542
≥1 USD $141.264542
≥10 USD $133.26844
≥100 USD $125.724948
≥500 USD $118.60843
≥1000 USD $111.894755
Inventory: 1148
Minimum: 1
-
+
Technical Details
Technical
Number of Outputs 1
Approval Agency CE, cULus, TUV
Efficiency 89%
Voltage - Isolation 3kV
Voltage - Output 1 24V
Current - Output (Max) 12.5A
Voltage - Input 90V~132VAC 180V~264VAC 210V~375VDC
Power (Watts) 300W
Applications Industrial, ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, IP20
Size / Dimension 4.59Lx3.29W x 4.90 H 116.6mmx83.5mmx124.5mm
Series PDRB-300 (300W)
Operating Temperature -30°C~71°C With Derating
Compliance
RoHS Status ROHS3 Compliant
Physical
Mounting Type DIN Rail
Supply Chain
Factory Lead Time 16 Weeks
