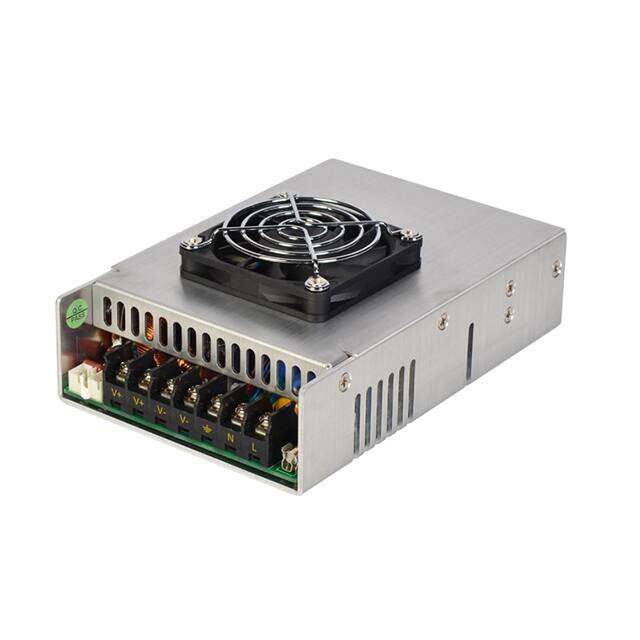

PCM-400-18-CF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 18V 400W
PDF
/
Inventory: 4581
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 54.61mm
Technical
Voltage - Input 90V~264VAC
Voltage - Output 1 18V
Max Output Current 12.22A
Voltage - Isolation 3kV
Efficiency 85%
Approval Agency CB, CE, cURus, TUVgs
Number of Outputs 1
Max Power Dissipation 400W
Power (Watts) 400W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input
Size / Dimension 6.00Lx4.00W x 2.15 H 152.4mmx101.6mmx54.5mm
Series PCM-400 (400W)
Published 2016
Operating Temperature 0°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 23 Weeks
