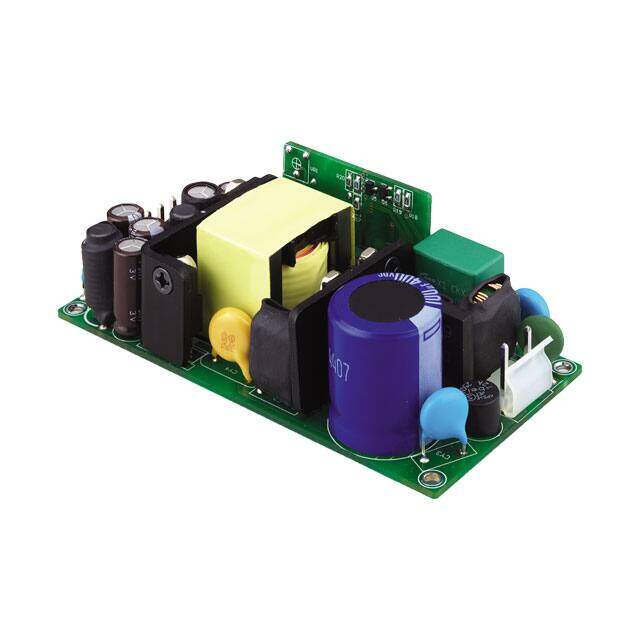

CFM60T-01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
Switching Power Supplies 60W 3Out 90-264VACin Out1=5V 2=12V 3=-12V
PDF
/
Buying Options
Total Price: USD $40.48
Unit Price: USD $40.48
≥1 USD $40.48
≥10 USD $39.2656
≥100 USD $38.08816
≥500 USD $36.945216
≥1000 USD $35.467344
≥3000 USD $33.694056
Inventory: 106
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 32.004mm
Technical
Current - Output 3 650mA
Current - Output 2 3.7A
Voltage - Output 3 -12V
Current - Output 1 5A
Voltage - Output 2 12V
Voltage - Input 90V~264VAC
Current - Output (Max) 4A 3A 500mA
Voltage - Output 1 5V
Voltage - Isolation 4.242kV
Efficiency 83%
Approval Agency CE, cURus, FCC, TUV
Number of Outputs 3
Power (Watts) 62W
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Universal Input
Size / Dimension 4.00Lx2.00W x 1.26 H 101.6mmx50.8mmx32.0mm
Series CFM40T (60W)
Operating Temperature 0°C~60°C With Derating
Physical
Weight 170.097139g
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 7 Weeks
