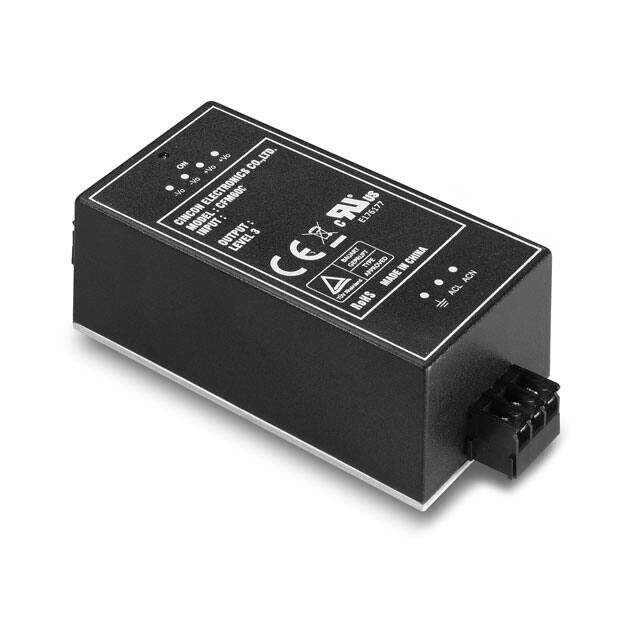

CFM60C050-DR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
DIN RAIL POWER SUPPLIES DIN RAIL
PDF
/
Buying Options
Total Price: USD $59.84
Unit Price: USD $59.84
≥1 USD $59.84
≥10 USD $58.0448
≥100 USD $56.30328
≥500 USD $54.61456
≥1000 USD $52.429872
≥3000 USD $49.808352
Inventory: 119
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type DIN Rail
Technical
Operating Temperature 0°C~70°C With Derating
Series CFM60CXXX-DR (60W)
Size / Dimension 4.33Lx2.32W x 1.62 H 110.0mmx59.0mmx41.2mm
Feature Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 40W
Number of Outputs 1
Approval Agency CE, cURus, FCC, TUV
Efficiency 77%
Voltage - Isolation 4.242kV
Voltage - Output 1 5V
Current - Output (Max) 8A
Voltage - Input 90V~264VAC
Compliance
RoHS Status ROHS3 Compliant
