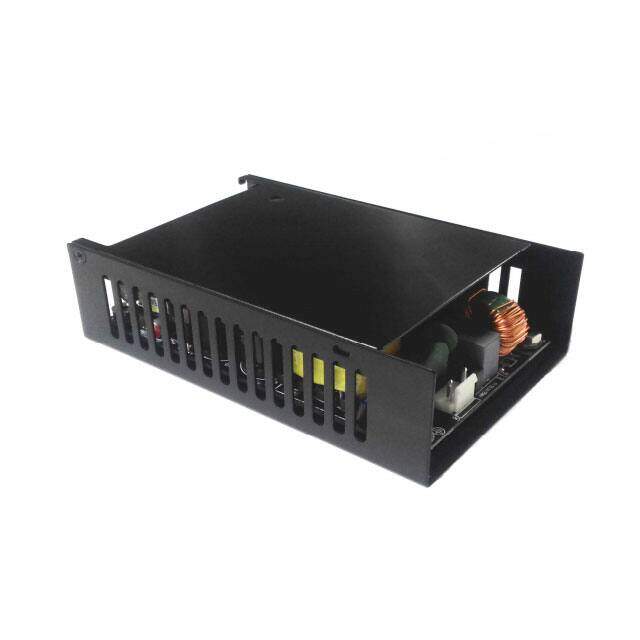

CFM300S480C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
SWITCHING POWER SUPPLIES AC-DC P
PDF
/
Inventory: 6878
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -40°C~80°C With Derating
Series CFM300S (300W)
Size / Dimension 5.35Lx3.47W x 1.59 H 136.0mmx88.0mmx40.4mm
Feature Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 300W
Number of Outputs 1
Approval Agency CE, cURus, FCC, TUV
Efficiency 94%
Voltage - Isolation 3kV
Voltage - Output 1 48V
Current - Output (Max) 6.25A
Voltage - Input 90V~264VAC
Compliance
RoHS Status ROHS3 Compliant
