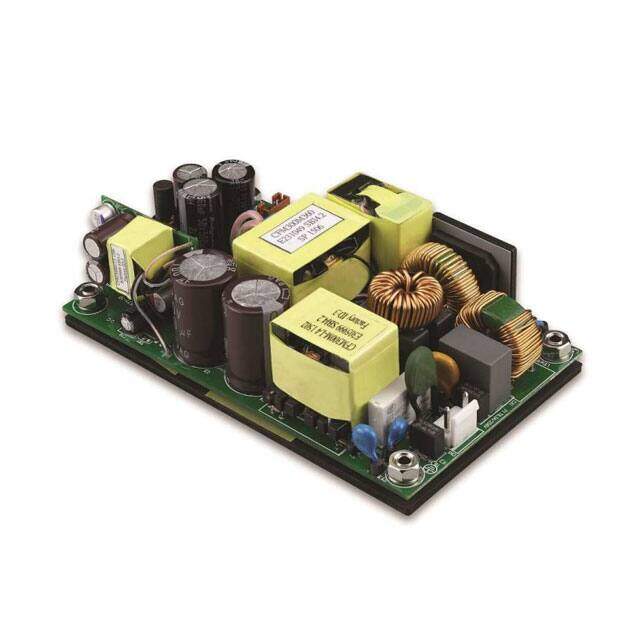

CFM300M480
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
SWITCHING POWER SUPPLIES AC-DC P
PDF
/
Buying Options
Total Price: USD $92.4
Unit Price: USD $92.4
≥1 USD $92.4
≥10 USD $87.897216
Inventory: 91
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Input 90V~264VAC
Current - Output (Max) 6.25A
Voltage - Output 1 48V
Voltage - Isolation 4kV
Efficiency 94%
Approval Agency CE, cURus, FCC, TUV
Number of Outputs 1
Power (Watts) 300W
Applications Medical
Type Open Frame
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
Size / Dimension 5.00Lx3.00W x 1.42 H 127.0mmx76.2mmx36.1mm
Series CFM300M (300W)
Operating Temperature -40°C~80°C With Derating
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 7 Weeks
