CFM12S050-T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

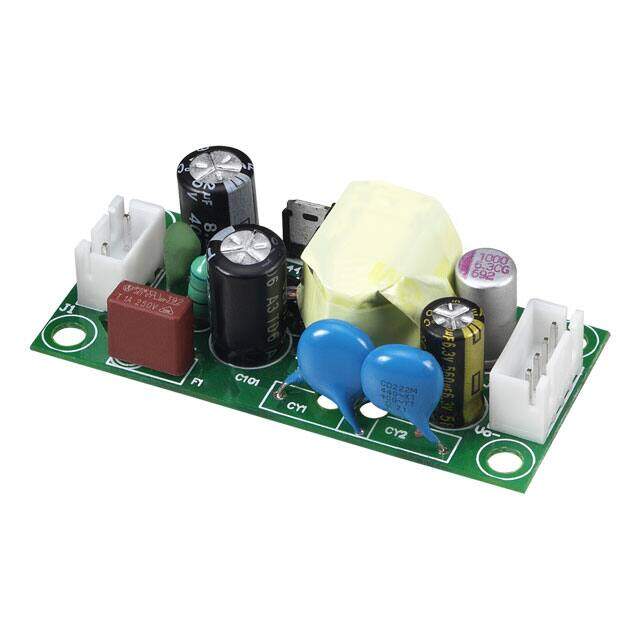

12 W, Single Output, 5 VDC@2 A Open Frame AC-DC Power Supply
PDF
/
Buying Options
Total Price: USD $9.58
Unit Price: USD $9.5832
≥1 USD $9.5832
≥10 USD $9.29632
≥100 USD $9.01648
≥500 USD $8.746496
≥1000 USD $8.396432
≥3000 USD $7.976672
Inventory: 196
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -40°C~70°C With Derating
Series CFM12S (12W)
Size / Dimension 2.15Lx1.00W x 0.68 H 54.6mmx25.4mmx17.3mm
Feature Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Open Frame
Applications Household Appliances, ITE (Commercial)
Power (Watts) 10W
Number of Outputs 1
Approval Agency CE, cURus, FCC, Nemko
Efficiency 80%
Voltage - Isolation 3kV
Voltage - Output 1 5V
Current - Output (Max) 2A
Voltage - Input 90V~264VAC
Compliance
RoHS Status ROHS3 Compliant
