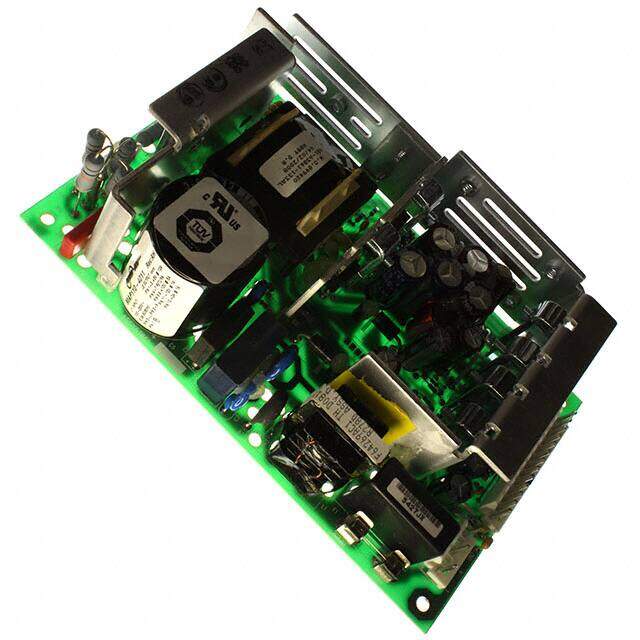

MAP110-4011
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC Power Supply Quad-OUT 5V/12V/-12V/24V 12A/5A/1A/1A 80W 19-Pin
PDF
/
Inventory: 5902
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature 0°C~70°C With Derating
Series MAP110 (110W)
Size / Dimension 7.00Lx4.30W x 1.97 H 177.8mmx109.2mmx50.0mm
Feature Adjustable Output, Remote Sense, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial)
Power (Watts) 80W 110W Forced Air
Number of Outputs 4
Approval Agency CB, cCSAus, CE
Efficiency 80%
Voltage - Isolation 4.242kV
Voltage - Output 1 5V
Current - Output (Max) 12A 5A 1A 1A
Voltage - Input 85V~264VAC
Voltage - Output 2 12V
Voltage - Output 3 -12V
Voltage - Output 4 24V
Minimum Load Required Yes
Compliance
RoHS Status ROHS3 Compliant
