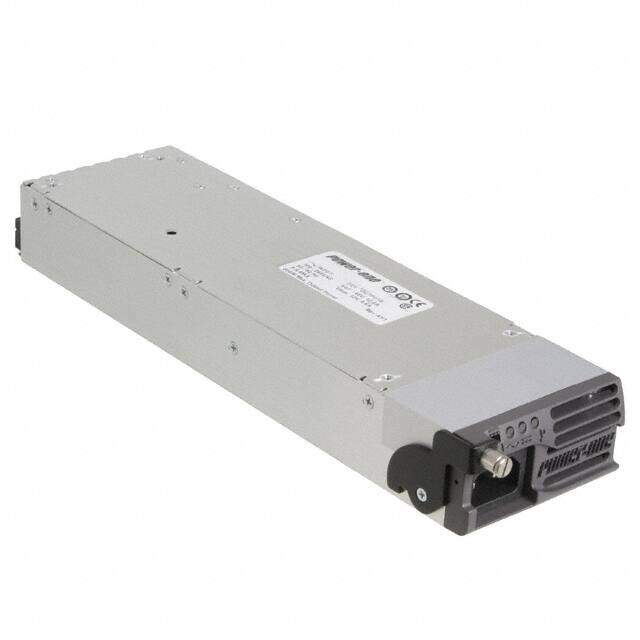

FNP600-48G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 48V 600W
PDF
/
Inventory: 1836
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Minimum Load Required No
Voltage - Input 90V~264VAC
Current - Output (Max) 12.6A
Voltage - Output 1 48V
Voltage - Isolation 4kV
Efficiency 89%
Number of Outputs 1
Power (Watts) 600W
Applications ITE (Commercial)
Type Front End
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, I2C? Interface, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input
Size / Dimension 11.74Lx1.60W x 3.30 H 298.2mmx40.6mmx83.8mm
Series FNP600 (600W)
Operating Temperature 0°C~70°C With Derating
Physical
Mounting Type Rack Mount
Supply Chain
Factory Lead Time 16 Weeks
