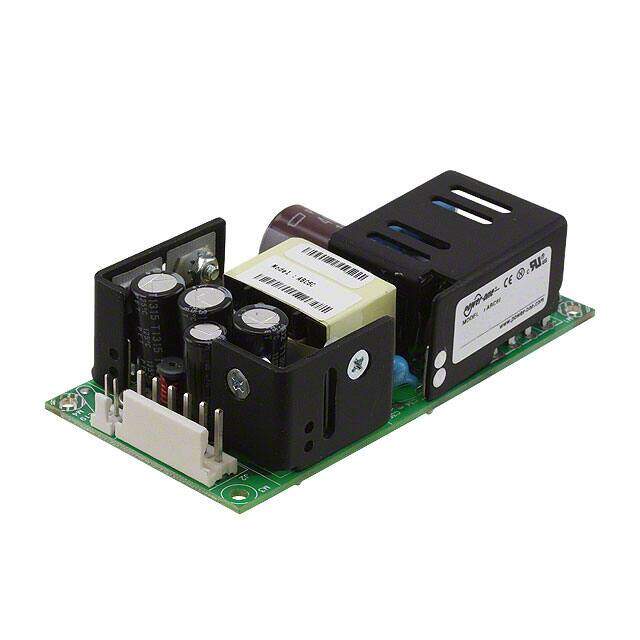

ABC60-3002G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERT 5.2V, 14.6V, -16.2
PDF
/
Buying Options
Total Price: USD $337.43
Unit Price: USD $337.429362
≥1 USD $337.429362
≥10 USD $318.329587
≥100 USD $300.310933
≥500 USD $283.312202
≥1000 USD $267.275661
Inventory: 1100
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -20°C~70°C With Derating
Series ABC60 (60W)
Size / Dimension 4.00Lx2.00W x 1.20 H 101.6mmx50.8mmx30.5mm
Feature Adjustable Output, Remote Sense, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial)
Power (Watts) 60W
Number of Outputs 3
Approval Agency CE
Efficiency 85%
Voltage - Isolation 4.242kV
Voltage - Output 1 5.2V
Current - Output (Max) 8A 2.5A 500mA
Voltage - Input 90V~264VAC
Voltage - Output 2 14.6V
Voltage - Output 3 -16.2V
Minimum Load Required Yes
Compliance
RoHS Status ROHS3 Compliant
