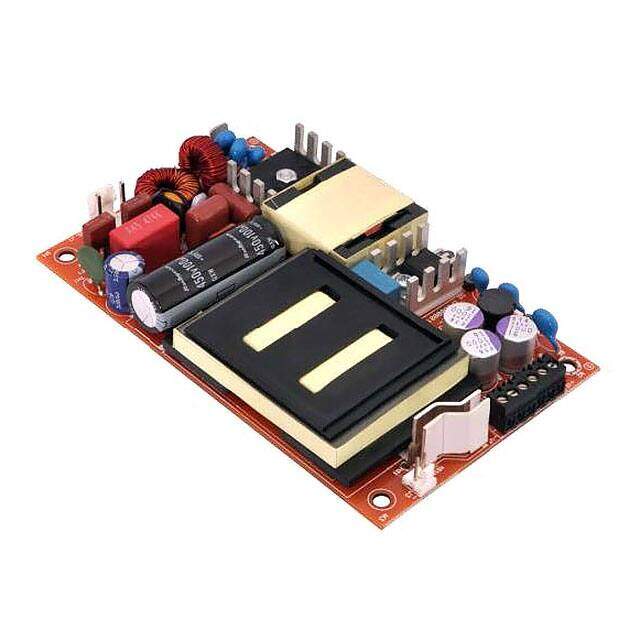

ABC275-1015L
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 15V 160/275W
PDF
/
Inventory: 9227
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -40°C~70°C With Derating
Series ABC275 (275W)
Size / Dimension 5.00Lx3.00W x 0.75 H 127.0mmx76.2mmx19.0mm
Feature Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial)
Power (Watts) 160W 275W Forced Air
Number of Outputs 1
Approval Agency CE
Efficiency 88%
Voltage - Isolation 3kV
Voltage - Output 1 15V
Current - Output (Max) 10.66A
Voltage - Input 80V~264VAC
Minimum Load Required No
Compliance
RoHS Status ROHS3 Compliant
